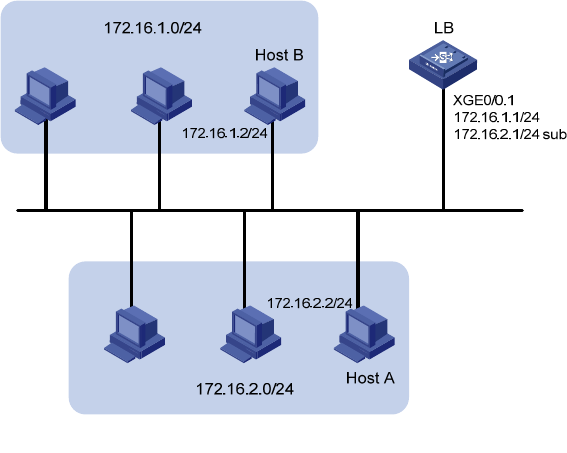

Figure 7 Network diagram for IP address configuration
Configuration procedure
# Assign a primary IP address and a secondary IP address for Ten-GigabitEthernet 0/0.1.
<LB> system-view
[LB] interface Ten-GigabitEthernet 0/0.1
[LB-Ten-GigabitEthernet0/0.1] ip address 172.16.1.1 255.255.255.0
[LB-Ten-GigabitEthernet0/0.1] ip address 172.16.2.1 255.255.255.0 sub
# Set the gateway address to 172.16.1.1 on the PCs attached to subnet 172.16.1.0/24, and to 172.16.2.1
on the PCs attached to subnet 172.16.2.0/24.
# Ping a host on subnet 172.16.1.0/24 from LB to check the connectivity.
<LB> ping 172.16.1.2
PING 172.16.1.2: 56 data bytes, press CTRL_C to break
Reply from 172.16.1.2: bytes=56 Sequence=1 ttl=255 time=25 ms
Reply from 172.16.1.2: bytes=56 Sequence=2 ttl=255 time=27 ms
Reply from 172.16.1.2: bytes=56 Sequence=3 ttl=255 time=26 ms
Reply from 172.16.1.2: bytes=56 Sequence=4 ttl=255 time=26 ms
Reply from 172.16.1.2: bytes=56 Sequence=5 ttl=255 time=26 ms
--- 172.16.1.2 ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 25/26/27 ms
The output information shows that LB can communicate with the hosts on subnet 172.16.1.0/24.
# Ping a host on subnet 172.16.2.0/24 from LB to check the connectivity.
<LB> ping 172.16.2.2
PING 172.16.2.2: 56 data bytes, press CTRL_C to break
Reply from 172.16.2.2: bytes=56 Sequence=1 ttl=255 time=25 ms
Reply from 172.16.2.2: bytes=56 Sequence=2 ttl=255 time=26 ms
Reply from 172.16.2.2: bytes=56 Sequence=3 ttl=255 time=26 ms
