Item Descri
p
tion
VLAN ID of the VLAN to which the MAC address belongs.
Port
Port to which the MAC address belongs. This configuration item is not required for
blackhole MAC address entries.
Setting the aging time for MAC address entries
Select Network > MAC > Confoguration from the navigation tree to enter the page for setting the MAC
address entry aging time, as shown in Figure 11.

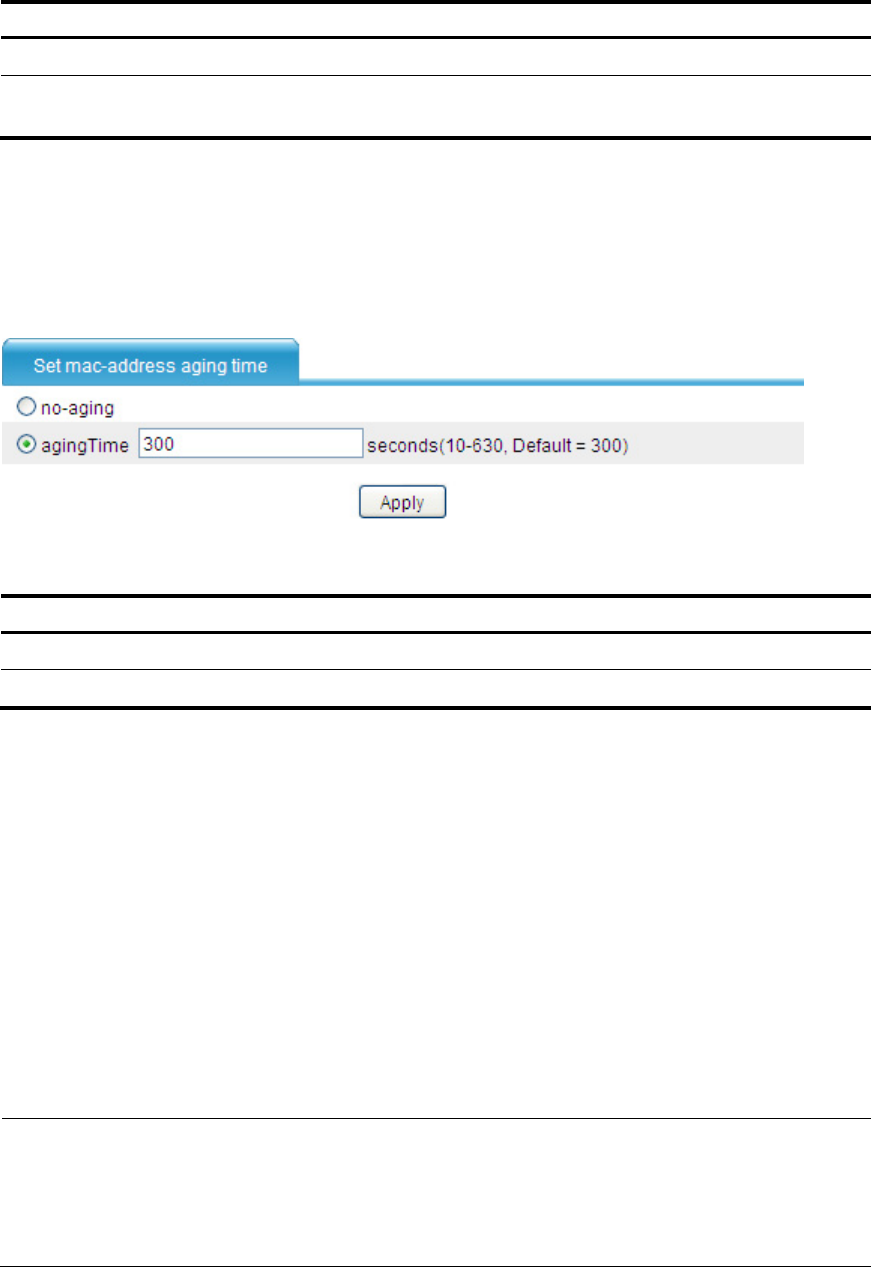

Figure 11 Set the aging
time for MAC address entries
Table 5 Configuration items of setting the aging time for MAC address entries
Item Descri
p
tion
No-aging MAC address entries will not age out.
Aging time Type the aging time for MAC address entries.
MAC address table configuration example
Network requirements
• The MAC address of a host is 000f-e235-dc71 and belongs to VLAN 1. It is connected to
Ten-GigabitEthernet 0/0 of the LB module. To prevent MAC address spoofing, add a static entry for
the host in the MAC address table of the LB module.
• The MAC address of another host is 000f-e235-abcd and belongs to VLAN 1. For security, because
this host once behaved suspiciously on the network, add a destination blackhole MAC address
entry for the host MAC address, so that all packets destined for the host will be dropped.
• Set the aging timer for dynamic MAC address entries to 500 seconds.
Configuration procedure
NOTE:
Before making the following configurations, check whether Ten-GigabitEthernet 0/0 operates in route
mode. If yes, change its operating mode to bridge mode (to do that, select System > Interface from the
navigation tree, and then find and select Ten-GigabitEthernet 0/0 to configure it accordingly); in
addition, specify the security zone to which Ten-GigabitEthernet 0/0 belongs.
# Create a static MAC address entry.
