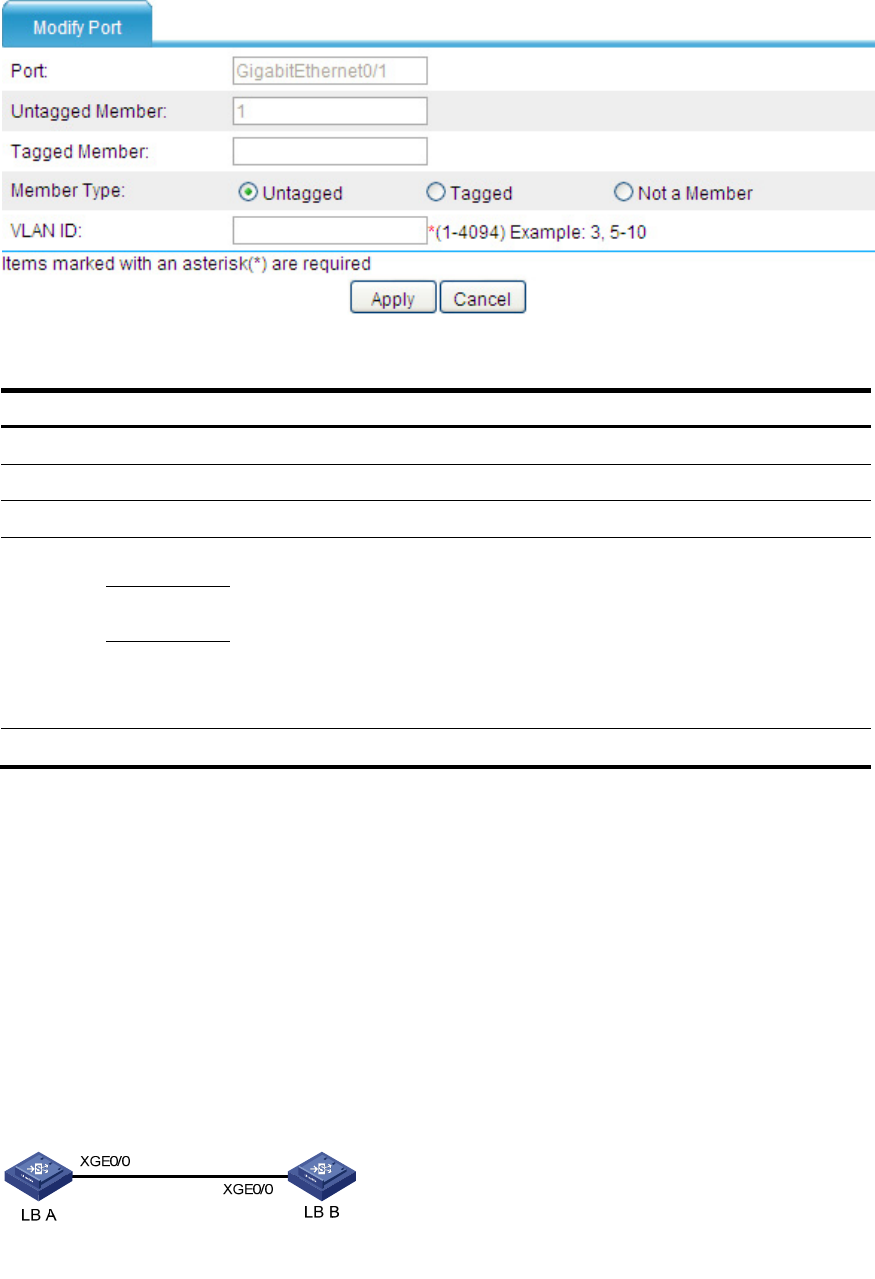

Figure 24 Modify a port

Table 9 Configuration items of modifying a port

Item Descri

tion

Port

Displays the port to be modified.

Untagged Member VLAN

Displays the VLAN(s) to which the port belongs as an untagged member.

Tagged Member VLAN

Displays the VLAN(s) to which the port belongs as a tagged member.

Member

Type

Untagged

Set the target member type of the port.

Select the Untagged, Tagged, or Not a Member option:

• Untagged—The port sends the traffic of the VLAN with the VLAN tag removed.

• Tagged—The port sends the traffic of the VLAN without removing the VLAN

tag.

• Not a Member—Removes the port from the VLAN.

Tagged

Not a

Member

VLAN ID Specify the VLAN to which the port belongs.

Return to VLAN configuration task list.

VLAN configuration examples

Network requirements

As shown in Figure 25:

• LB A is connected to LB B through port Ten-GigabitEthernet 0/0.

• Ten-GigabitEthernet 0/0 is a hybrid port with VLAN 100 as its PVID.

• Assign Ten-GigabitEthernet 0/0 to VLAN 2 and VLANs 6 through 50 as an untagged member, and

to VLAN 100 as a tagged member.

Figure 25 Network diagram for VLAN configuration
