49

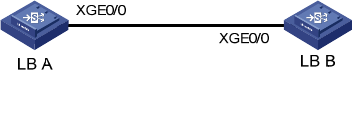

Figure 26 Network diagram for port-based VLAN configuration
2. Configuration procedure
• Configure LB A
# Create VLAN 2, VLAN 6 through VLAN 50, and VLAN 100.
<LB A> system-view
[LB A] vlan 2
[LB A-vlan2] quit
[LB A] vlan 100
[LB A-vlan100] vlan 6 to 50
Please wait... Done.
# Enter Ten-GigabitEthernet 0/0 interface view.
[LB A] interface Ten-GigabitEthernet 0/0
# Configure Ten-GigabitEthernet 0/0 as a trunk port and configure its PVID as 100.
[LB A-Ten-GigabitEthernet0/0] port link-type trunk
[LB A-Ten-GigabitEthernet0/0] port trunk pvid vlan 100
# Configure Ten-GigabitEthernet 0/0 to deny the packets of VLAN 1 (by default, all ports allow packets
of VLAN 1 to pass through).
[LB A-Ten-GigabitEthernet0/0] undo port trunk permit vlan 1
# Configure Ten-GigabitEthernet 0/0 to permit packets from VLAN 2, VLAN 6 through VLAN 50, and
VLAN 100 to pass through.
[LB A-Ten-GigabitEthernet0/0] port trunk permit vlan 2 6 to 50 100
Please wait... Done.
[LB A-Ten-GigabitEthernet0/0] quit
[LB A] quit
• Configure LB B as you configure LB A.
• Verification
Verifying the configuration on LB A is similar to that of LB B. The following takes LB A as example.
# Display information about Ten-GigabitEthernet 0/0 of LB A.
<LB A> display interface Ten-GigabitEthernet 0/0
Ten-GigabitEthernet0/0 current state: UP
IP Packet Frame Type: PKTFMT_ETHNT_2, Hardware Address: 0000-5600-0000
Description: Ten-GigabitEthernet0/0 Interface
Loopback is not set
Media type is not sure,Port hardware type is No connector
Unknown-speed mode, unknown-duplex mode
Link speed type is autonegotiation, link duplex type is autonegotiation
Flow-control is not enabled
The Maximum Frame Length is 1500
Broadcast MAX-ratio: 100%
Unicast MAX-ratio: 100%
Multicast MAX-ratio: 100%
