51
As shown in Figure 27, the isolate-user-VLAN function is enabled on Switch B. VLAN 10 is the
isolate-user-VLAN, and VLAN 2, VLAN 5, and VLAN 8 are secondary VLANs associated with VLAN 10
and are invisible to Switch A.

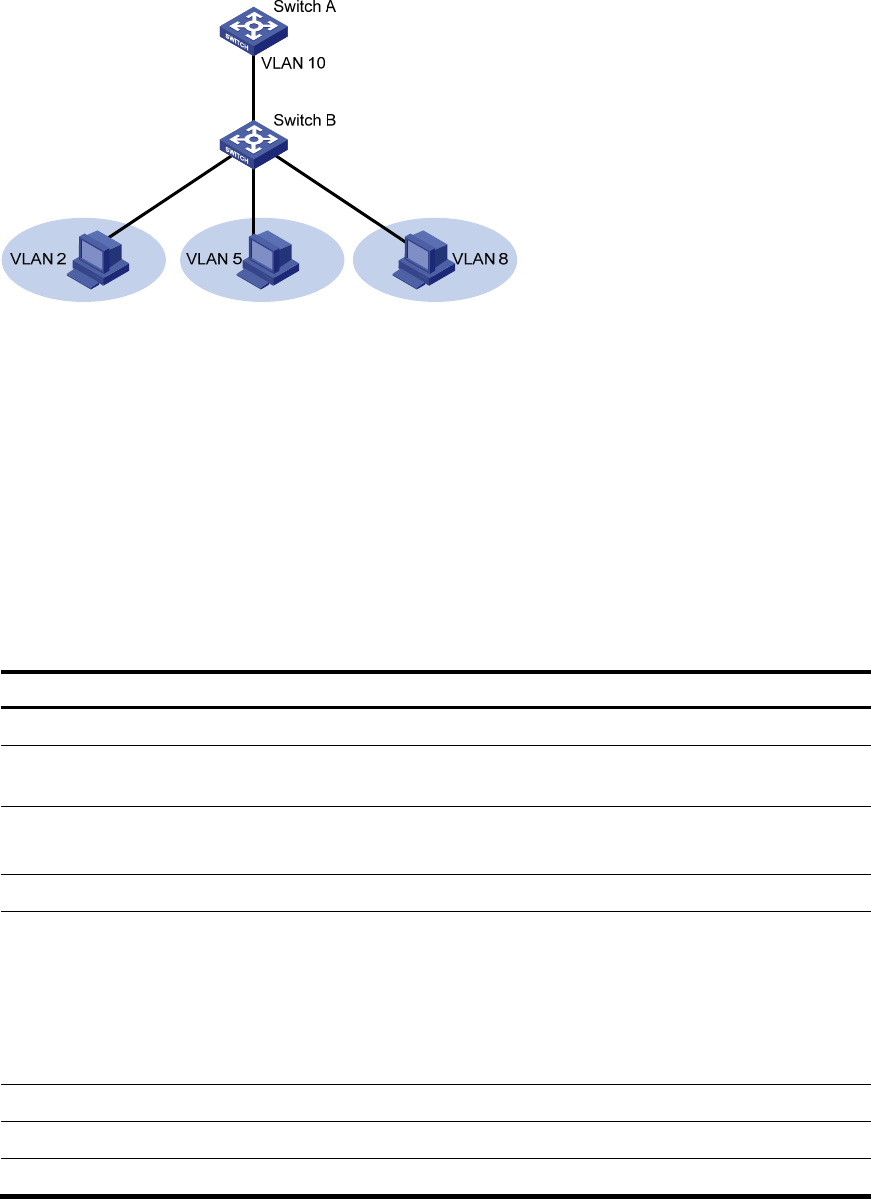

Figure 27 An isolate-user-VLAN example
Configuring an isolate-user-VLAN
Configure the isolate-user-VLAN through the following tasks:
1. Configure the isolate-user-VLAN.
2. Configure the secondary VLANs.
3. Assign non-trunk ports to the isolate-user-VLAN and ensure that at least one port takes the
isolate-user-VLAN as its PVID.
4. Assign non-trunk ports to each secondary VLAN and ensure that at least one port in a secondary
VLAN takes the secondary VLAN as its PVID.
5. Associate the isolate-user-VLAN with the specified secondary VLANs.
Follow these steps to configure an isolate-user-VLAN:
To do... Use the command
Remarks
Enter system view system-view —
Create a VLAN and enter VLAN
view
vlan vlan-id —
Configure the VLAN as an
isolate-user-VLAN
isolate-user-vlan enable
Required
Not configured by default.
Return to system view
quit
—
Assign ports to the
isolate-user-VLAN and ensure that
at least one port takes the
isolate-user-VLAN as its PVID
• For access ports:
For the configuration procedure, see
“Assigning an access port to a VLAN.”
• For hybrid ports:
For the configuration procedure, see
“Assigning a hybrid port to a VLAN.”
Required
Use either approach.
Return to system view quit —
Create secondary VLANs vlan { vlan-id1 [ to vlan-id2 ] | all } Required
Return to system view
quit
—
