To do… Use the command… Remarks
Enable local proxy ARP
local-proxy-arp enable [ ip-range
startIP to endIP ]
Required
Disabled by default.
Displaying and maintaining proxy ARP
To do… Use the command… Remarks
Display whether proxy ARP is
enabled
display proxy-arp [ interface interface-type
interface-number ]
Available in any view
Display whether local proxy ARP is
enabled
display local-proxy-arp [ interface
interface-type interface-number ]
Available in any view
Proxy ARP configuration examples
Proxy ARP configuration example
Network requirements
As shown in Figure 34, Host A and Host D have the same prefix and mask (the IP addresses of Host A
and Host D are 192.168.10.100/16 and 192.168.20.200/16 respectively, and the two IP addresses
belong to the same network 192.168.0.0/16), but they are located on different subnets separated
through LB module.
As no default gateway is configured for Host A and Host D, you need to configure proxy ARP on LB
module to enable the communication between Host A and Host D.

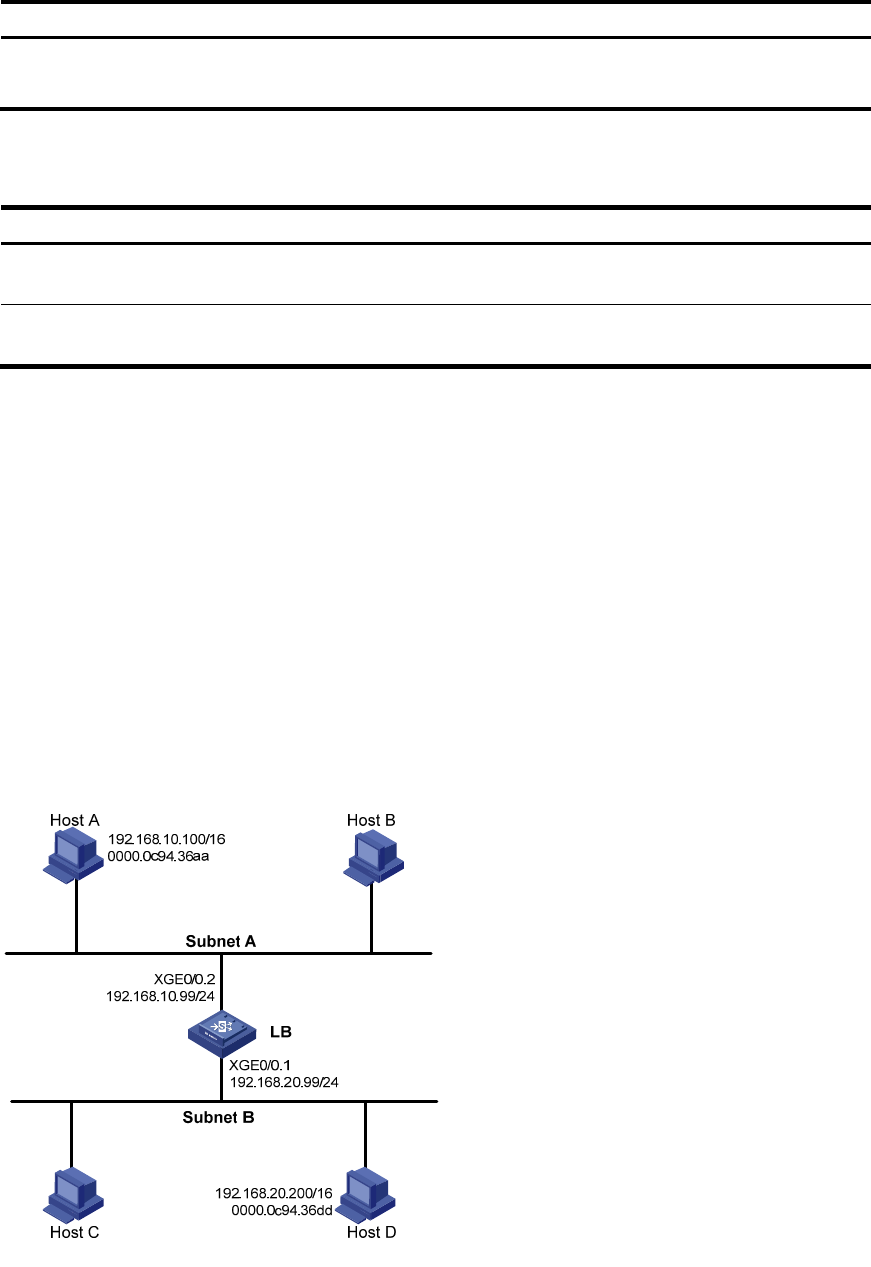

Figure 34 Network diagram for proxy ARP
Configuration procedure
# Specify the IP address of interface Ten-GigabitEthernet 0/0.2.
