• Configure the operating mode of GigabitEthernet 3/0/1 and GigabitEthernet 3/0/2 of the switch

as access. Assign them to VLAN 102 and VLAN 103 respectively.

• Ten-GigabitEthernet 2/0/1 of the switch connects to ten-GigabitEthernet 0/0 of the LB module.

Configure ten-GigabitEthernet 2/0/1 as a trunk port.

• Configure the operating mode of the LB module's ten-GigabitEthernet interface as Layer 3.

Configure two subinterfaces, ten-GigabitEthernet 0/0.1 and ten-GigabitEthernet 0/0.2, and set

their encapsulation type to dot1q. Associate ten-GigabitEthernet 0/0.1 with VLAN 102 and

ten-GigabitEthernet 0/0.2 with VLAN 103.

• Assign IP address 102.0.0.3/24 to ten-GigabitEthernet 0/0.1 and 103.0.0.3/24 to

ten-GigabitEthernet 0/0.2.

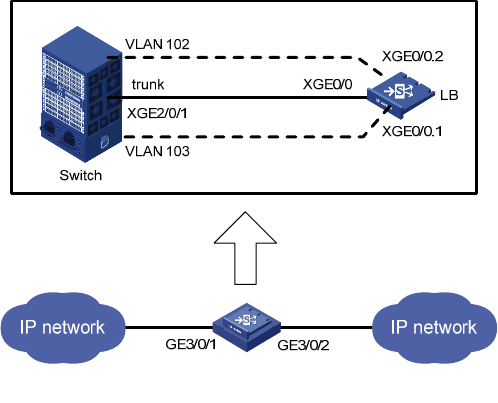

Figure 38 Network diagram for Layer 3 subinterface forwarding

Configuration procedure

1. Configure the ports on the switch.

# Create VLAN 102 and VLAN 103. Assign GigabitEthernet 3/0/1 to VLAN 102 and GigabitEthernet

3/0/2 to VLAN 103.

<Sysname> system-view

[Sysname] vlan 102

[Sysname-vlan102] port GigabitEthernet 3/0/1

[Sysname-vlan102] vlan 103

[Sysname-vlan103] port GigabitEthernet 3/0/2

[Sysname-vlan103] quit

# Configure the link type of ten-GigabitEthernet 2/0/1 as trunk and assign the trunk port to VLAN 102

and VLAN 103.

[Sysname] interface Ten-GigabitEthernet 2/0/1

[Sysname-Ten-GigabitEthernet2/0/1] port link-type trunk

[Sysname-Ten-GigabitEthernet2/0/1] port trunk permit vlan 102 103

2. Configure the LB module.

# Configure the operating mode of ten-GigabitEthernet 0/0 as Layer 3.

[Sysname] interface Ten-GigabitEthernet 0/0

[Sysname-Ten-GigabitEthernet0/0] port link-mode route
