# Configure two subinterfaces for ten-GigabitEthernet 0/0. Set their encapsulation type to dot1q and
associate them to with VLANs created on the switch. Assign IP addresses for the subinterfaces.
[Sysname-Ten-GigabitEthernet0/0] interface Ten-GigabitEthernet0/0.1
[Sysname-Ten-GigabitEthernet0/0.1] vlan-type dot1q vid 102
[Sysname-Ten-GigabitEthernet0/0.1] ip address 102.0.0.3 24
[Sysname-Ten-GigabitEthernet0/0.1] interface Ten-GigabitEthernet0/0.2
[Sysname-Ten-GigabitEthernet0/0.2] vlan-type dot1q vid 103
[Sysname-Ten-GigabitEthernet0/0.2] ip address 103.0.0.3 24
Inter-VLAN Layer 3 forwarding configuration
example
Network requirements
As shown in Figure 39, traffic between GigabitEthernet 3/0/1 and GigabitEthernet 3/0/2 is filtered by
a LB module, and inter-VLAN Layer 3 forwarding needs to be configured.
• Configure the operating mode of GigabitEthernet 3/0/1 and GigabitEthernet 3/0/2 of the switch
as access. Assign them to VLAN 102 and VLAN 103 respectively.
• Ten-GigabitEthernet 2/0/1 of the switch connects to ten-GigabitEthernet 0/0 of the LB module.
Configure the link type of the two interfaces as trunk.
• Configure the operating mode of ten-GigabitEthernet 0/0 as Layer 2. Create two VLAN interfaces
VLAN-interface 102 and VLAN-interface 103.
• Assign IP address 102.0.0.3/24 to VLAN-interface 102 and 103.0.0.3/24 to VLAN-interface 103.

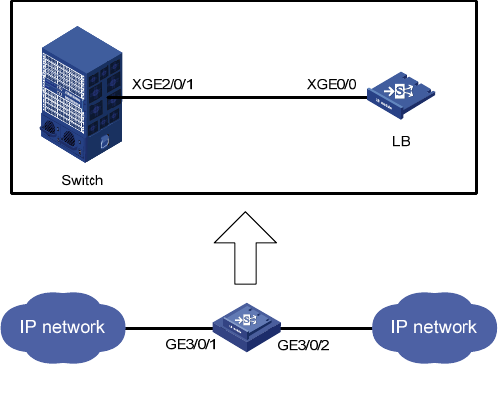

Figure 39 Network diagram for inter-VLAN Layer 3 forwarding
Configuration procedure
1. Configure the ports on the switch.
# Create VLAN 102 and VLAN 103. Assign GigabitEthernet 3/0/1 to VLAN 102 and GigabitEthernet
3/0/2 to VLAN 103.
<Sysname> system-view
[Sysname] vlan 102
[Sysname-vlan102] port GigabitEthernet 3/0/1
