Managing interfaces in the web
You can use the interface management feature to view interface information, create or remove logical
interfaces, change interface status, and reset interface parameters.
Displaying interface information and statistics
Select System > Interface from the navigation tree to enter the page shown in Figure 1. The page shows
the name, IP address, mask, and status of each interface.

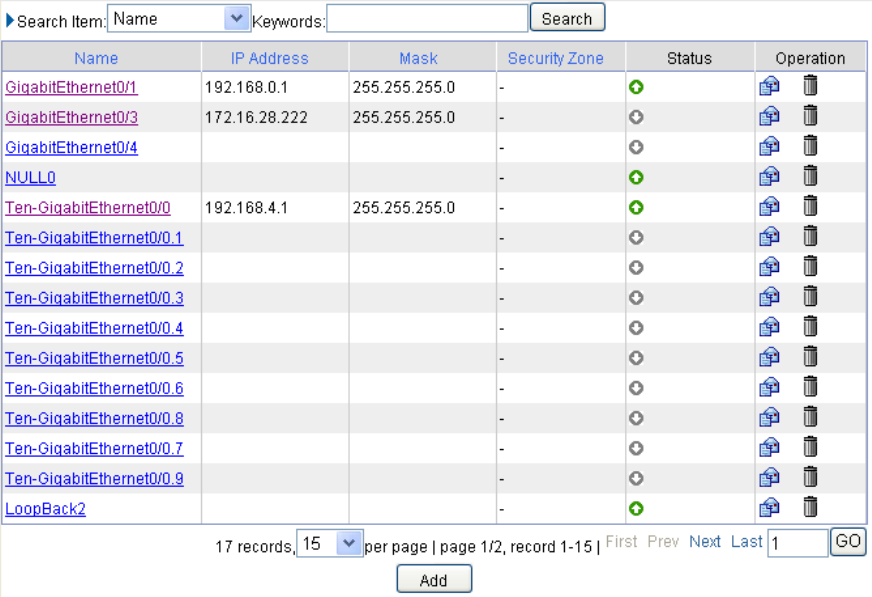

Figure 1 Interface management
To view the statistics of an interface, click the interface name in the interface name list to enter the page
shown in Figure 2.
