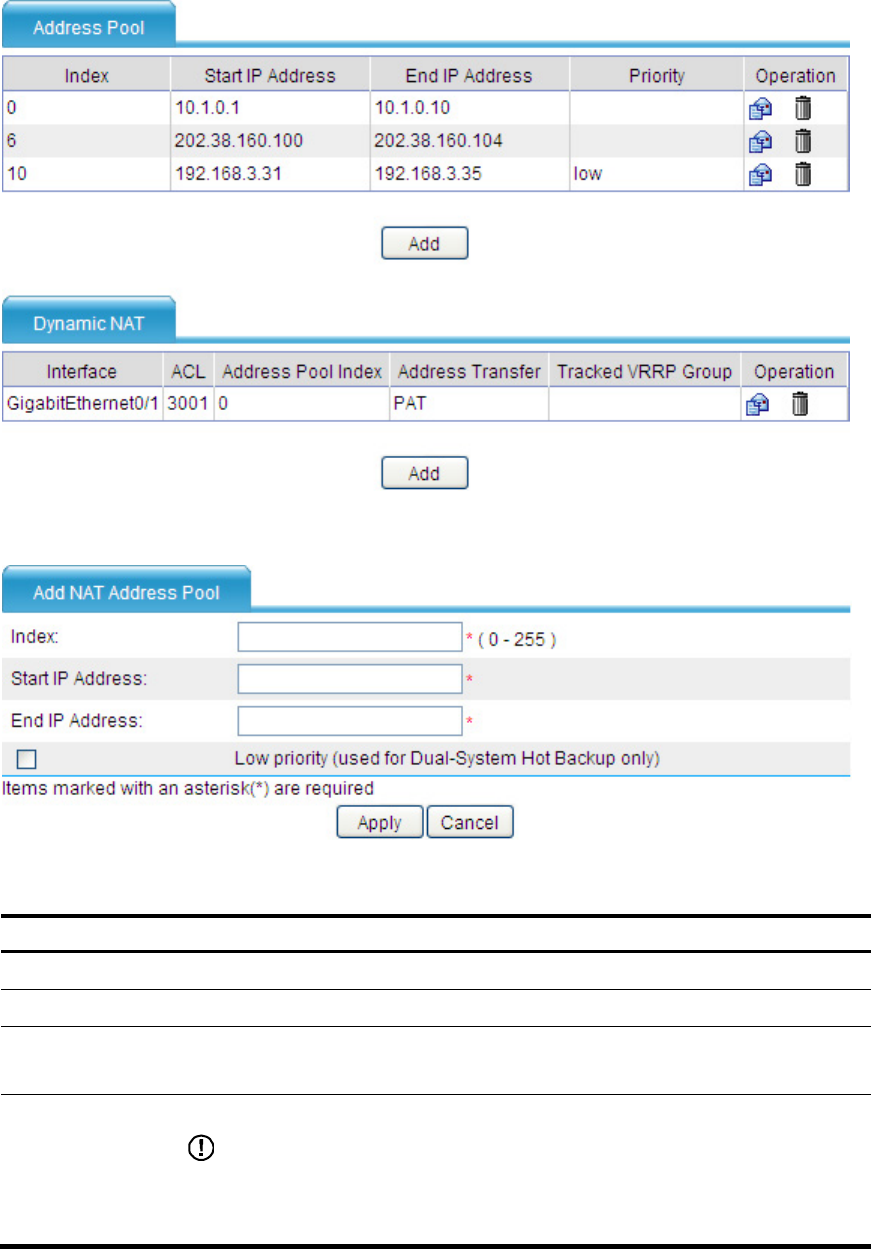

Figure 43 Dynamic NAT configuration page
Figure 44 Add NAT Address Pool page
Table 13 NAT address pool configuration items
Item Descri
p
tion
Index Specify the index of an address pool.
Start IP Address Specify the start IP address of the address pool.
End IP Address
Specify the end IP address of the address pool.
The end IP address must be identical to or higher than the start IP address.
Low priority
Configure the address pool as a low-priority or a non low-priority address pool.
IMPORTANT:
This configuration item is applicable to the stateful failover networking only. You cannot
configure the same address pool as the low-priority address pool on the local and peer LB
modules.
Return to Dynamic NAT configuration task list.
