Creating a static address mapping

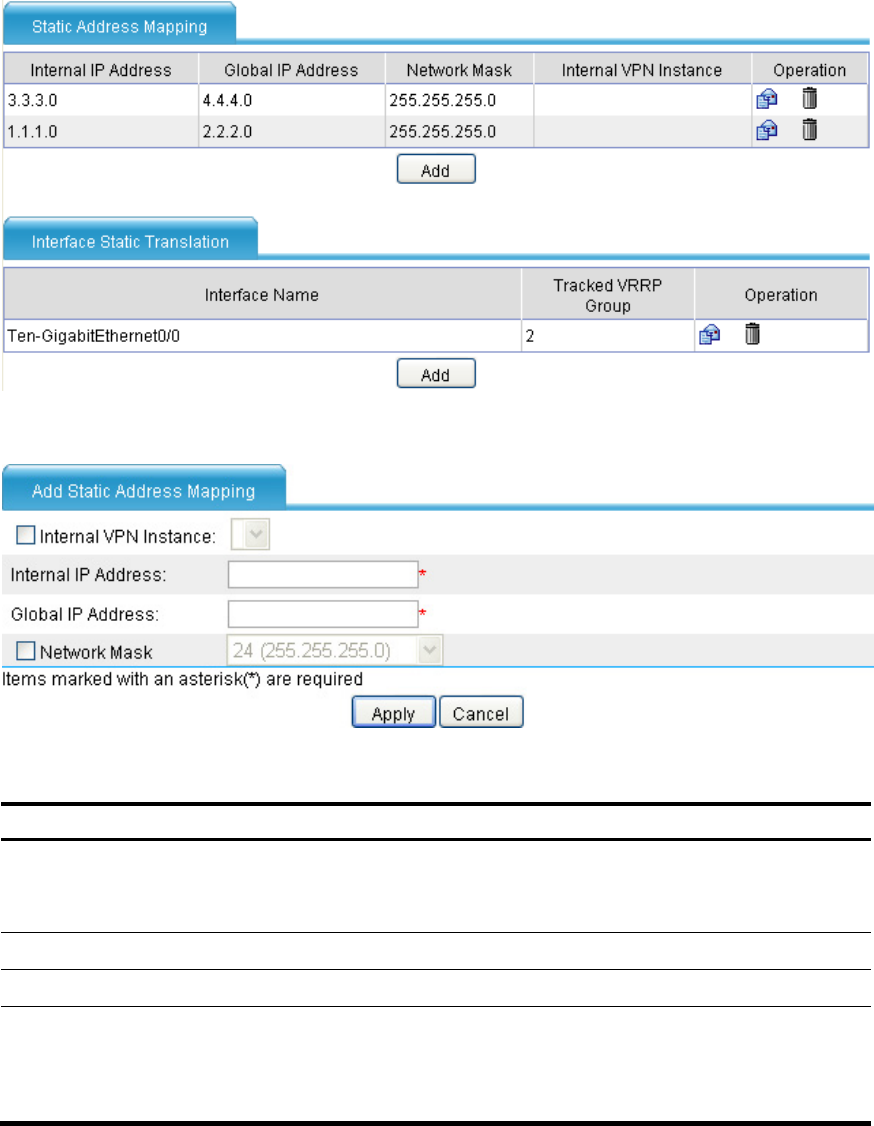

Select Security > NAT > Static NAT from the navigation tree to enter the page, as shown in Figure 46. In
the Static Address Mapping field where static address mappings are displayed, click Add to enter the
Add Static Address Mapping page shown in Figure 47.
Figure 46 Static NAT co
nfiguration page
Figure 47 Add Static Address Mapping page
Table 15 Static NAT configuration item
Item Descri
p
tion
Internal VPN Instance
Specify a name of the VPN instance to which the internal IP addresses belong.
If no internal VPN instance is specified, this indicates that the internal address is
a common private network address.
Internal IP Address Type an internal IP address for the static address mapping.
Global IP Address Type a public IP address for the static address mapping.
Network Mask
Specify the network mask for internal and public IP addresses.
If the network mask is specified, net-to-net static NAT is implemented. If no
network mask is specified, the default mask 255.255.255.255 is used.
One-to-one static NAT is delivered.
Return to Static NAT configuration task list.
