90

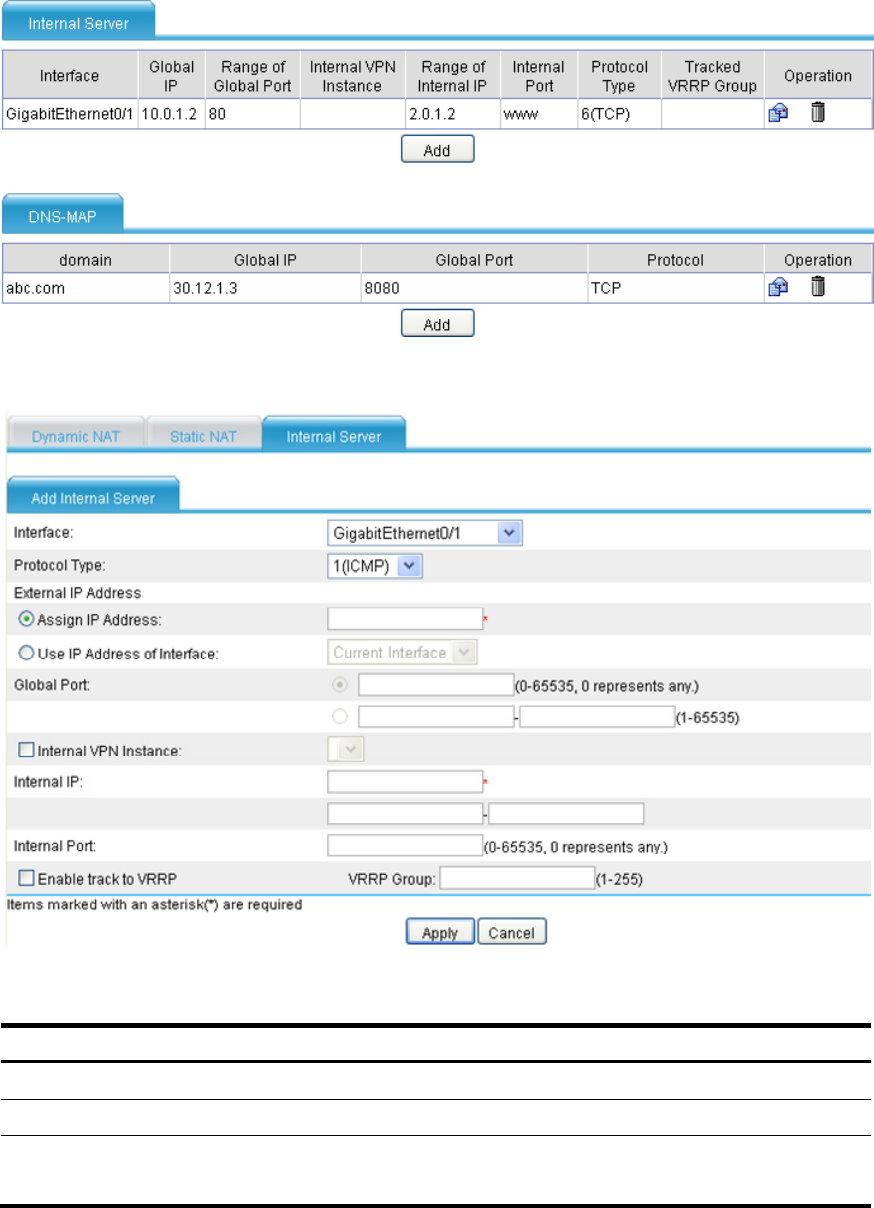

Figure 49 Internal server configuration page
Figure 50 Add Internal Server page
Table 17 Internal server configuration items
Item Descri
p
tion
Interface Specify an interface to which the internal server policy is applied.
Protocol Type Select or specify the type of the protocol to be carried by IP.
External IP Address
Specify the public IP address for the internal server.
You can type an IP address, or use the IP address of an interface.
