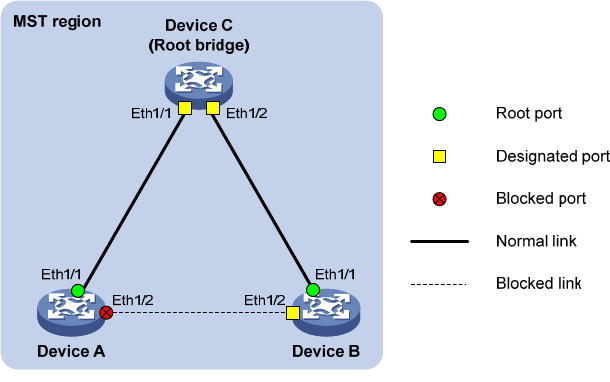

Figure 53 Network diagram
2. Configuration procedure
# Enable Digest Snooping on Ethernet 1/1 of Device A and enable global Digest Snooping on
Device A.
<DeviceA> system-view
[DeviceA] interface ethernet 1/1
[DeviceA-Ethernet1/1] stp config-digest-snooping
[DeviceA-Ethernet1/1] quit
[DeviceA] stp config-digest-snooping
# Enable Digest Snooping on Ethernet 1/1 of Device B and enable global Digest Snooping on
Device B.
<DeviceB> system-view
[DeviceB] interface ethernet 1/1
[DeviceB-Ethernet1/1] stp config-digest-snooping
[DeviceB-Ethernet1/1] quit
[DeviceB] stp config-digest-snooping
Configuring No Agreement Check
In RSTP and MSTP, the following types of messages are used for rapid state transition on designated
ports:
• Proposal—sent by designated ports to request rapid transition
• Agreement—used to acknowledge rapid transition requests
Both RSTP and MSTP devices can perform rapid transition on a designated port only when the port
receives an agreement packet from the downstream device. RSTP and MSTP devices have the following
differences:
• For MSTP, the downstream device’s root port sends an agreement packet only after it receives an
agreement packet from the upstream device.
• For RSTP, the downstream device sends an agreement packet regardless of whether an agreement
packet from the upstream device is received.
Figure 54 sho
ws the r
apid state transition mechanism on MSTP designated ports.
