R3721-F3210-F3171-HP High-End Firewalls Network Management Configuration Guide-6PW101

159
Table 30 Field description
Field Descri
p
tion
IP Address Assigned IP address
Client MAC Address/Client
ID
Client MAC address or client ID bound to the IP address
Pool Name Name of the DHCP address pool where the IP address resides
Lease Expiration Lease time of the IP address
DHCP server configuration examples
DHCP networking involves two types:
• The DHCP server and clients are on the same subnet.
• The DHCP server and clients are not on the same subnet and communicate with each other via a
DHCP relay agent.
The DHCP server configuration for the two types is the same.
Static IP address assignment configuration example
Network requirements

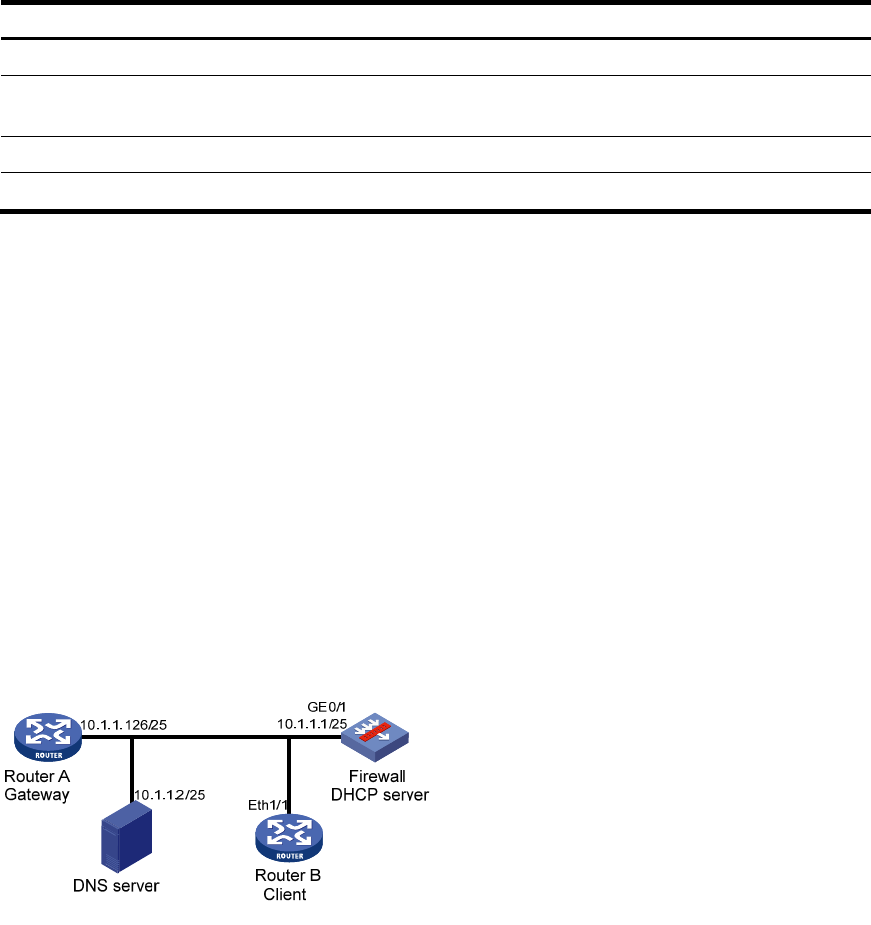

As shown in Figure 93, the DHCP client (Router B) obtains a static IP address, DNS server address,
gateway address, and other related parameters from the DHCP server (Firewall).
Figure 93 Network diagram
Configuration procedure
# Specify IP addresses for interfaces and create security zones. (Details not shown.)
# Configure the DHCP server
• Select Network > DHCP > DHCP Server from the navigation tree and perform the following
configuration, as shown in Figure 94.
