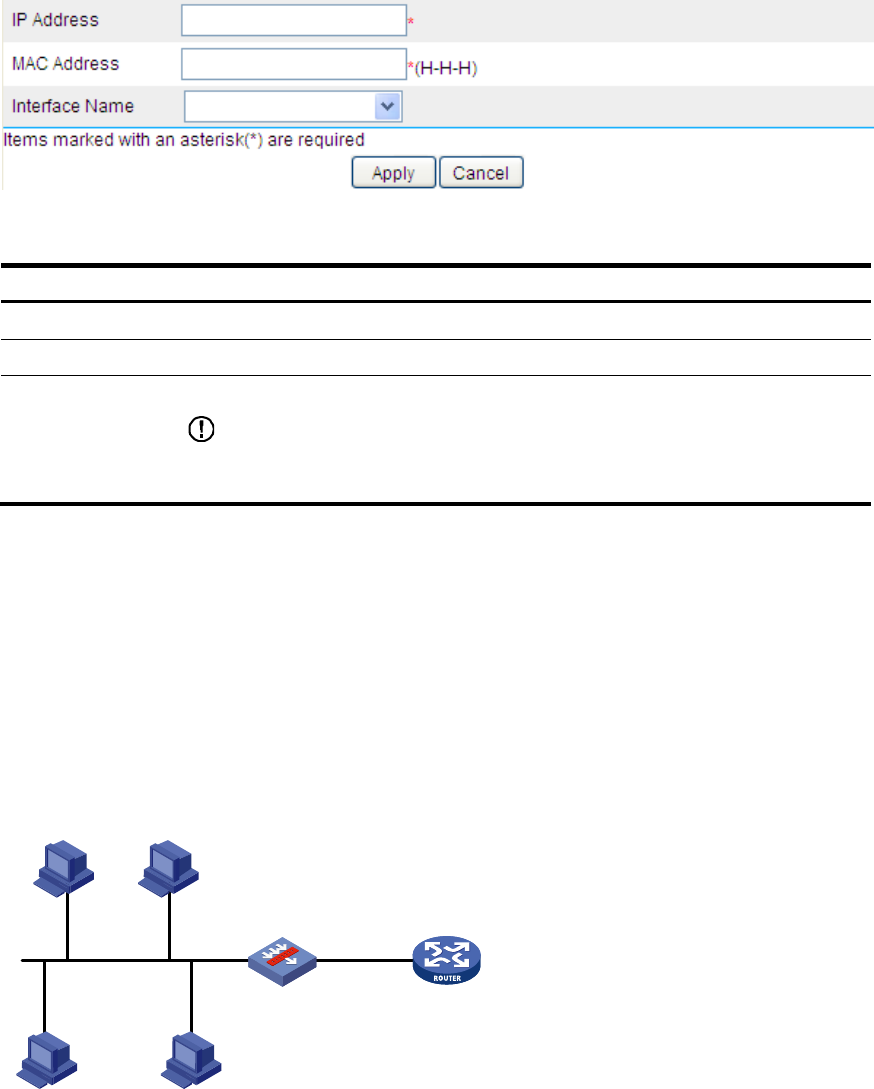

Figure 111 Create a static IP-to-MAC binding
Table 36 Configuration items
Item Descri
p
tion
IP Address Enter the IP address of a DHCP client.
MAC Address Enter the MAC address of the DHCP client.
Interface Name
Select the Layer 3 interface connected with the DHCP client.
IMPORTANT:
The interface of a static binding entry must be configured as a DHCP relay agent; otherwise,
address entry conflicts may occur.
DHCP relay agent configuration example
Network requirements
As shown in Figure 112, GigabitEthernet 0/1 on the DHCP relay agent (Firewall) connects to the network
where DHCP clients reside. The IP address of GigabitEthernet 0/1 is 10.10.1.1/24 and IP address of
GigabitEthernet 0/2 is 10.1.1.2/24 that connects to the DHCP server whose IP address is 10.1.1.1/24.
The Firewall forwards messages between DHCP clients and the DHCP server.
Figure 112 Network diagram
Configuration procedure
1. Specify IP addresses for interfaces and create security zones. (Details not shown.)
2. Configure the DHCP relay agent
# Enable DHCP.
DHCP server
Firewall
DHCP relay
DHCP client DHCP client
DHCP clientDHCP client
GE0/2
10.1.1.2/24
GE0/1
10.10.1.1/24
Eth1/1
10.1.1.1/24
