285
{
Click Apply.
{
Click the icon for ACL 2000 on the ACL list, and click Add. Perform configuration on the
page shown in Figure 190.

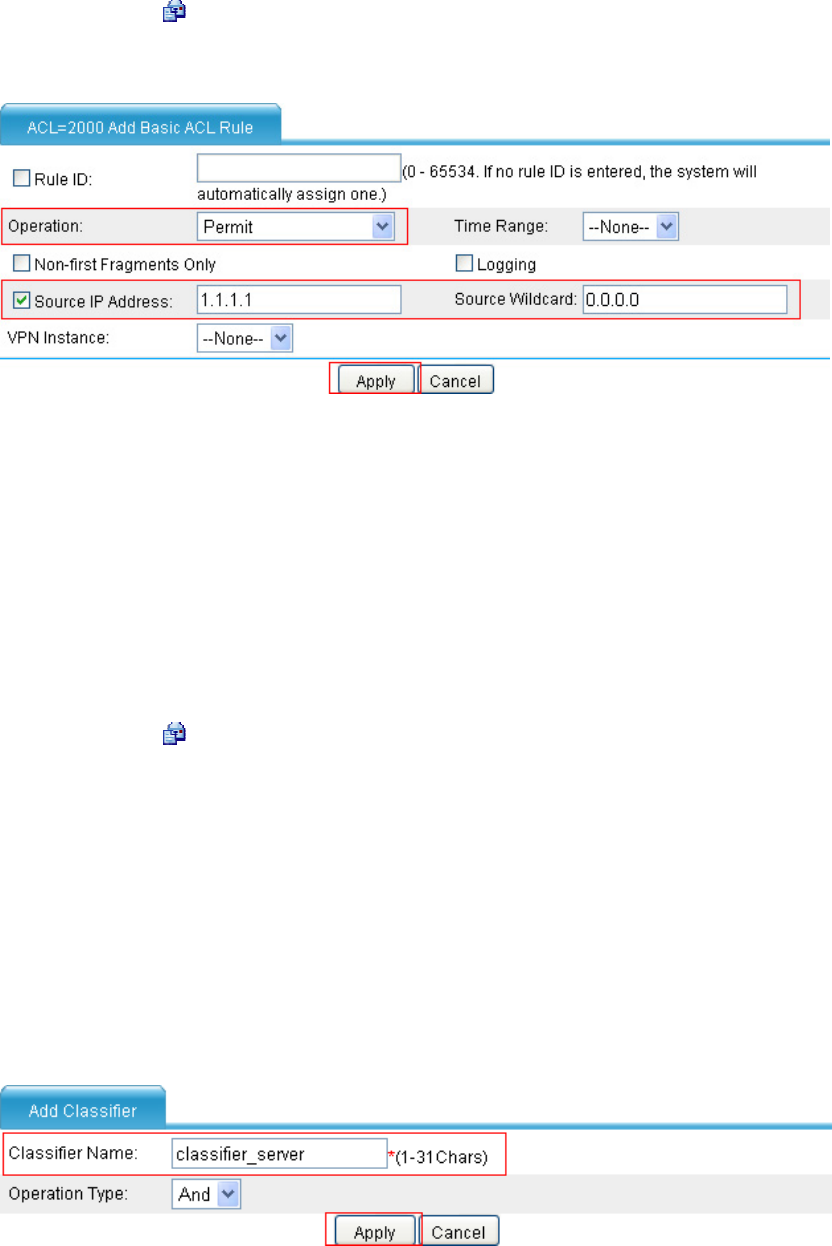

Figure 190 Configuring rules for ACL 2000
{
Select Permit from the Operation list.
{
Select the Source IP Address box, enter 1.1.1.1 as the source IP address, and 0.0.0.0 as the
source wildcard.
{
Click Apply.
# Configure ACL 2001 to match traffic from Host.
{
Select Firewall > ACL from the navigation tree, and click Add. Perform configuration on the
page shown in Figure 189.
{
Enter 2001 as the ACL number.
{
Click Apply.
{
Click the icon for ACL 2001 on the ACL list, and click Add. Perform configuration on the
page shown in Figure 190.
{
Select Permit from the Operation list.
{
Select the Source IP Address box, enter 1.1.1.2 as the source IP address, and 0.0.0.0 as the
source wildcard.
{
Click Apply.
2.
Configure classes.
# Create a class named classifier_server, and reference ACL 2000 in the class.
{
Select Firewall > QoS > Classifier from the navigation tree, and click Add. Perform
configuration on the page shown in Figure 191.
Figure 191 Creating a class named classifier_server
{
Enter classifier_server as the classifier name.
