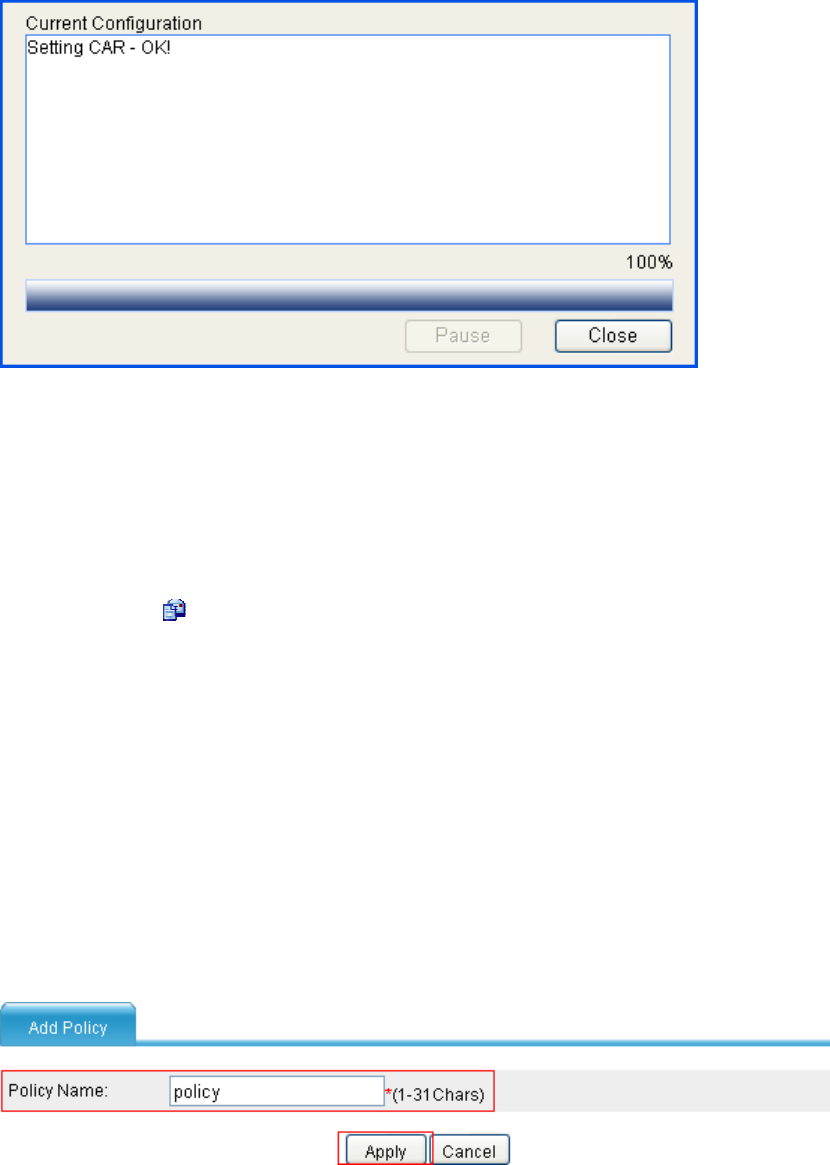

Figure 195 Configuration progress dialog box
{
When OK appears, click Close.
# Create a behavior named behavior_host, and configure CAR for the behavior.
{ On the page displaying behaviors, click Add. Perform configuration on the page shown
in Figure 193.
{ Enter behavior_host as the behavior name.
{ Click Apply.
{ Click the icon for behavior_host on the behavior list, and perform configuration on the
page shown in Figure 194.
{ Select the CAR option.
{ Enter 8 in the CIR field.
{ Select the CBS option, and then enter 1875.
{ Click Apply. The configuration progress dialog box as shown in Figure 195 appears.
{ After OK appears, click Close.
4. Configure a QoS policy.
# Create a policy named policy, and configure class-behavior associations in the policy.
{ Select Firewall > QoS > Policy from the navigation tree, and click Add. Perform configuration
on the page shown in Figure 196.
Figure 196 Creating a policy named policy
{ Enter policy as the policy name.
{ Click Apply.
{ Select policy from the Policy Name list and then click Add Relation. Perform configuration on
the page shown in Figure 197.
