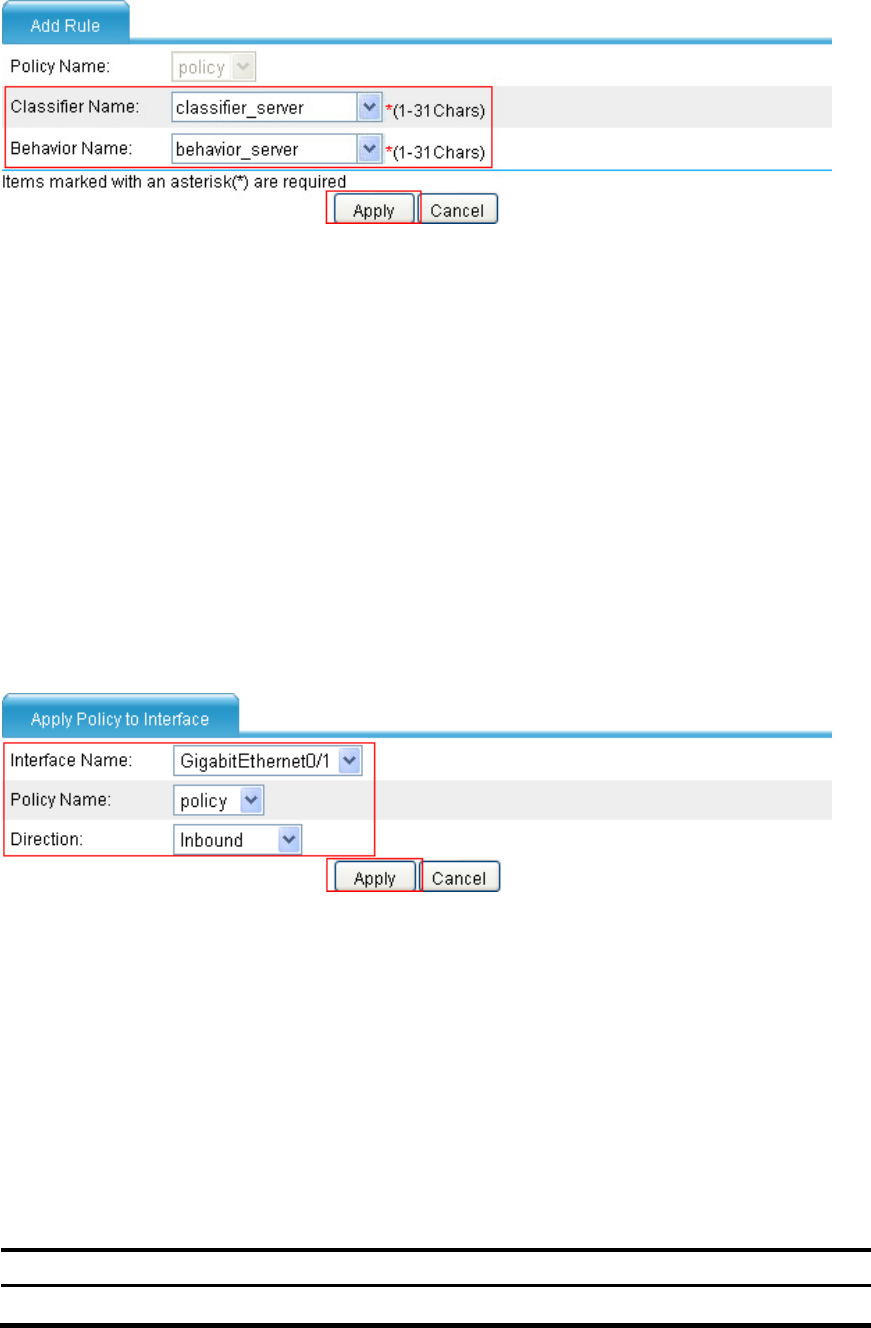

Figure 197 Configuring class-behavior associations for the policy named policy
{ Select classifier_server from the Classifier Name list.
{ Select behavior_server from the Behavior Name list.
{ Click Apply.
{ Select policy from the Policy Name list and then click Add Relation. Perform configuration on
the page shown in Figure 197.
{ Select classifier_host from the Classifier Name list.
{ Select behavior_host from the Behavior Name list.
{ Click Apply.
5. Apply the policy to an interface.
# Apply the policy named policy to the incoming packets of GigabitEthernet 0/1.
{ Select Firewall > Traffic Policing > Apply from the navigation tree, and click Apply Policy.
Perform configuration on the page shown in Figure 198.
Figure 198 Applying the policy named policy to the incoming packets of GigabitEthernet 0/1
{
Select GigabitEthernet 0/1 from the Interface Name list.
{ Select policy from the Policy Name list.
{ Select Inbound from the Direction list.
{ Click Apply.
Priority marking configuration example
Network requirements
As shown in Figure 199, configure a priority marking QoS policy on Firewall to satisfy the following
requirements:
Traffic source Destination Processin
g
p
riorit
y
Host A, B Data server High
