291

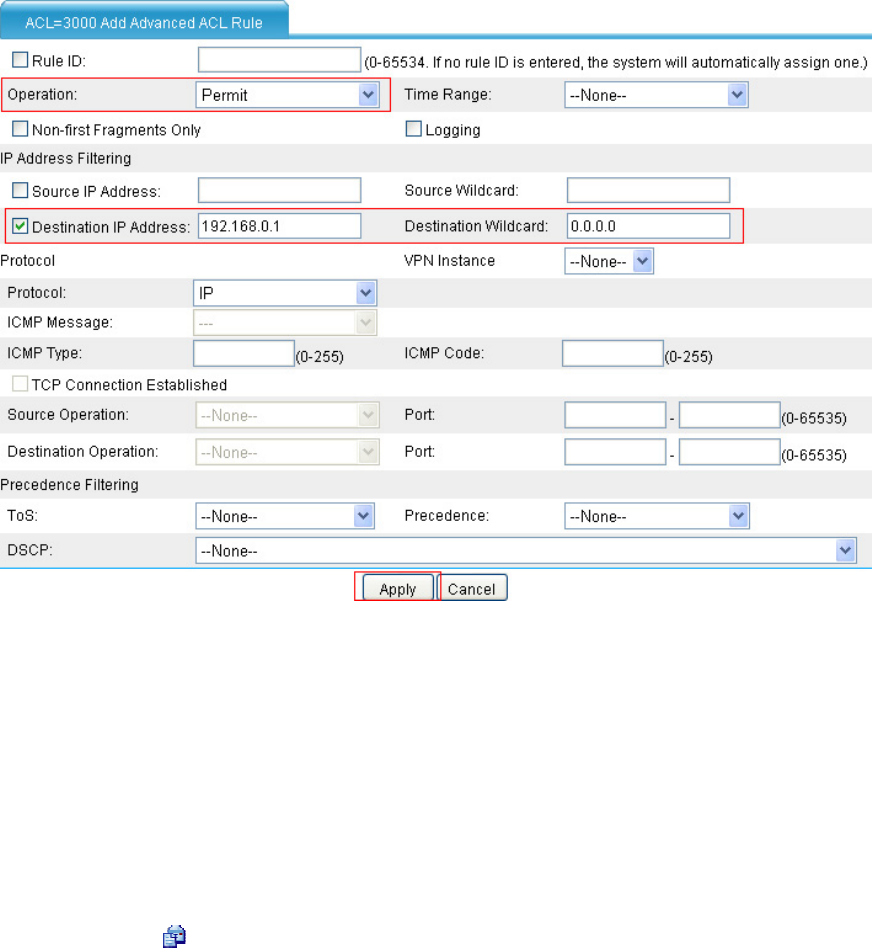

Figure 201 Configuring rules for ACL 3000
{
Select Permit from the Operation list.
{
Select the Destination IP Address box, and enter IP address 192.168.0.1 and destination
wildcard 0.0.0.0.
{
Click Apply.
# Configure ACL 3001 to match packets with destination address 192.168.0.2.
{
Select Firewall > ACL from the navigation tree and then click Add. Perform configuration on the
page shown in Figure 200.
{
Enter the ACL number 3001.
{
Click Apply.
{
Click the icon for ACL 3001 on the ACL list and click Add. Perform configuration on the
page shown in Figure 201.
{
Select Permit from the Operation list.
{
Select the Destination IP Address box, and enter IP address 192.168.0.2 and destination
wildcard 0.0.0.0.
{
Click Apply.
# Configure ACL 3002 to match packets with destination address 192.168.0.3.
{
Select Firewall > ACL from the navigation tree and then click Add. Perform configuration on the
page shown in Figure 200.
{
Enter the ACL number 3002.
{
Click Apply.
