292
{
Click the icon for ACL 3002 on the ACL list and click Add. Perform configuration on the
page shown in Figure 201.
{
Select Permit from the Operation list.
{
Select the Destination IP Address box, and enter IP address 192.168.0.3 and destination
wildcard 0.0.0.0.
{
Click Apply.
2.
Configure classes:
# Configure class classifier_dbserver to match packets based on ACL 3000.
{
Select Firewall > QoS > Classifier from the navigation tree and then click Add. Perform
configuration on the page as shown in Figure 202.

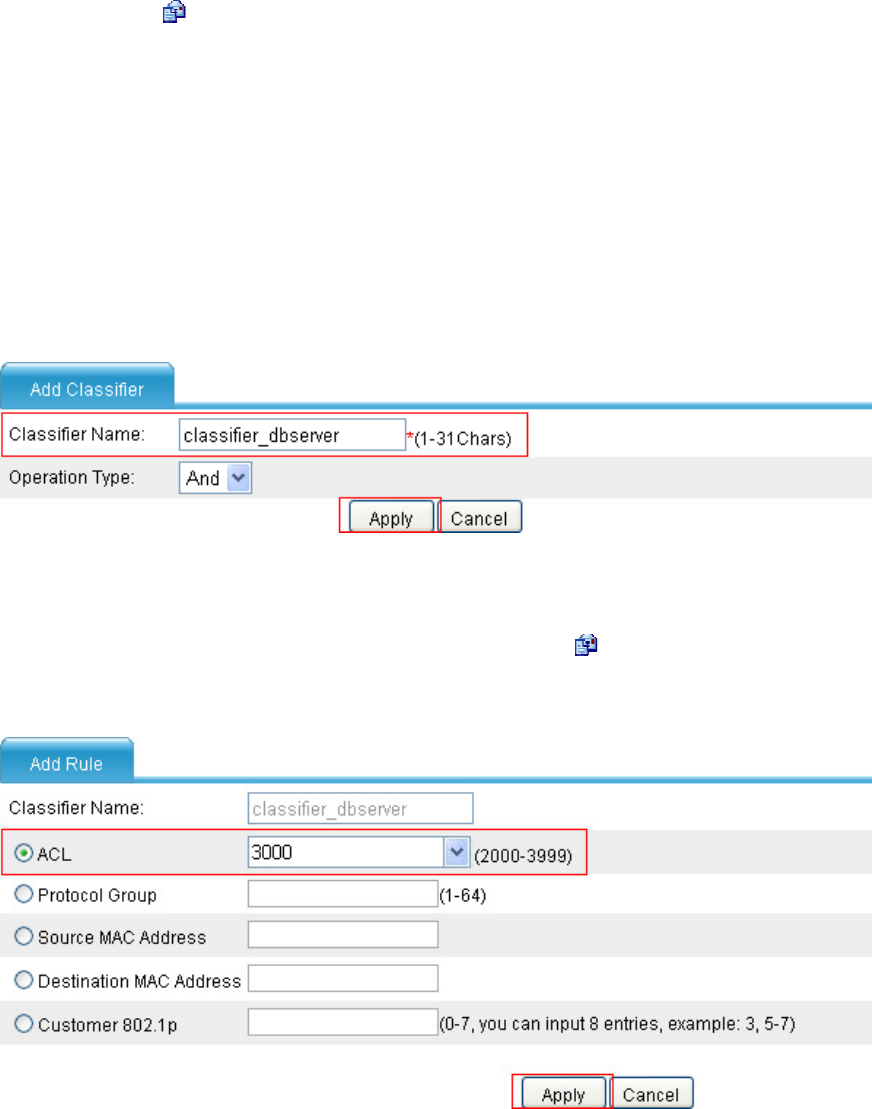

Figure 202 Creating class classifier_dbs
erver
{
Enter the class name classifier_dbserver.
{
Click Apply.
{
Select classifier_dbserver on the classifier list and click its icon. Click Create, and perform
configuration on the page on the page shown in Figure 203.
Figure 203 Configuring rules fo
r class classifier_dbserver
{
Select the ACL option and select ACL 3000.
{
Click Apply.
# Configure class classifier_mserver to match packets based on ACL 3001.
{
Select Firewall > QoS > Classifier from the navigation tree and then click Add. Perform
configuration on the page shown in Figure 202.
{
Enter the class name classifier_mserver.
{
Click Apply.
