Table Of Contents
299

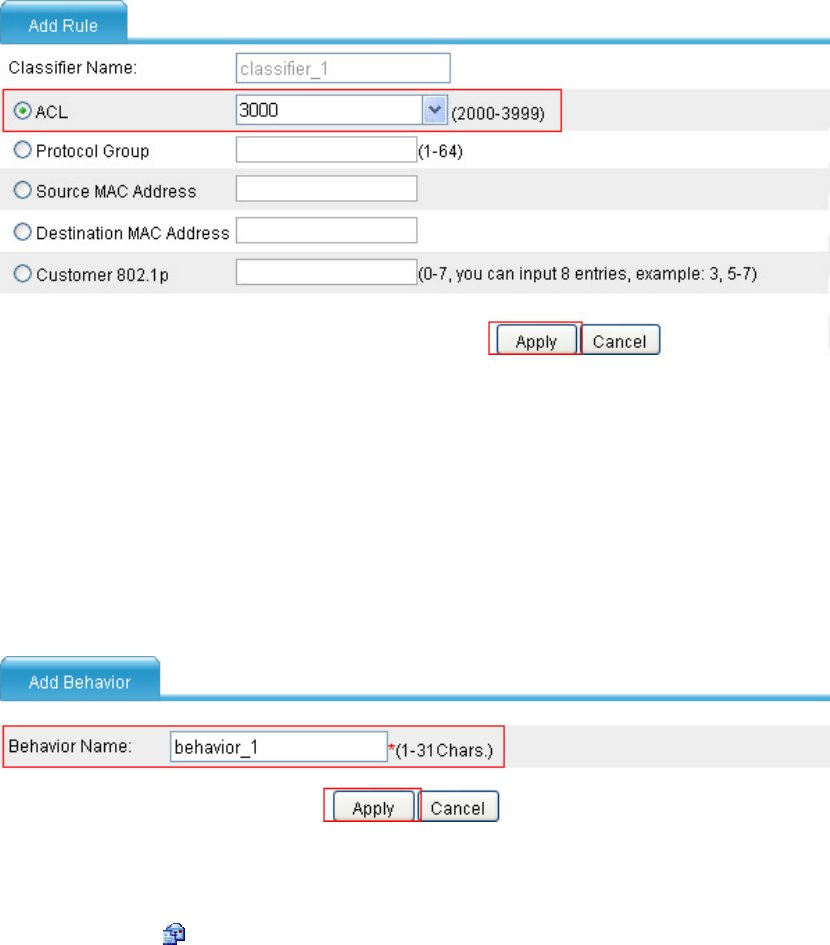

Figure 214 Configuring rules for classifier_1
{
Select the ACL option, and then select 3000 from the list.
{
Click Apply.
3.
Configure traffic behaviors:
# Create a behavior named behavior_1, and configure the packet filtering action for the behavior to
drop packets.
{
Select Firewall > QoS > Behavior from the navigation tree, and click Add. Perform
configuration on the page shown in Figure 215.
Figure 215 Creating a traffic behavior named behavior_1
{
Enter behavior_1 as the behavior name.
{
Click Apply.
{
Click the icon for behavior_1 on the behavior list, and perform configuration on the page
shown in Figure 216.
