Configuring BFD for RIP (bidirectional detection in BFD control
packet mode) at the CLI
Network requirements
As shown in Figure 248:
• Firewall A is connected to Router C through Router B. GigabitEthernet 0/2 on Firewall A,
GigabitEthernet 0/1 on Router C, and GigabitEthernet 0/1 and GigabitEthernet 0/2 on Router B
run RIP process 1.
• Configure a static route to Router C on Firewall A, and configure a static route to Firewall A on
Router C. Enable BFD on GigabitEthernet 0/2 of Firewall A and GigabitEthernet 0/1 of Router C.
• Firewall A is connected to Router C through Router D. GigabitEthernet 0/1 on Firewall A runs RIP
process 2; GigabitEthernet 0/2 on Router C, and GigabitEthernet 0/1 and GigabitEthernet 0/2
on Router D run RIP process 1.
• Enable static route redistribution into RIP on Firewall A and Router C so that Firewall A and Router
C have routes to send to each other. Firewall A learns the static route sent by Router C, the outbound
interface is the interface connected to Router B.
• When the link between Router B and Router C fails, BFD can quickly detect the link failure and
notify it to RIP, and the BFD session goes down. In response, RIP deletes the neighbor relationship
with Router C and the route information received from Router C. Then, Firewall A learns the static
route sent by Router C, and the outbound interface of the route is the interface connected to Router
D.

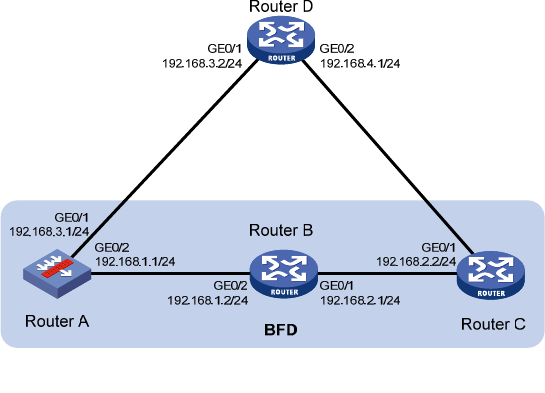

Figure 248 Network diagram
Configuration procedure
1. Configure RIP basic functions and enable static route redistribution into RIP so that Firewall A and
Router C have routes to send to each other:
# Configure Firewall A.
<FirewallA> system-view
[FirewallA] rip 1
[FirewallA-rip-1] network 192.168.1.0
[FirewallA-rip-1] peer 192.168.2.2
[FirewallA-rip-1] undo validate-source-address
