Displaying OSPF interface information
1. Select Network > Routing Management > OSPF from the navigation tree.
The OSPF configuration page appears.
2. After you complete OSPF area configurations, click Show Interface on the Show Information tab.
The OSPF interface information is displayed.

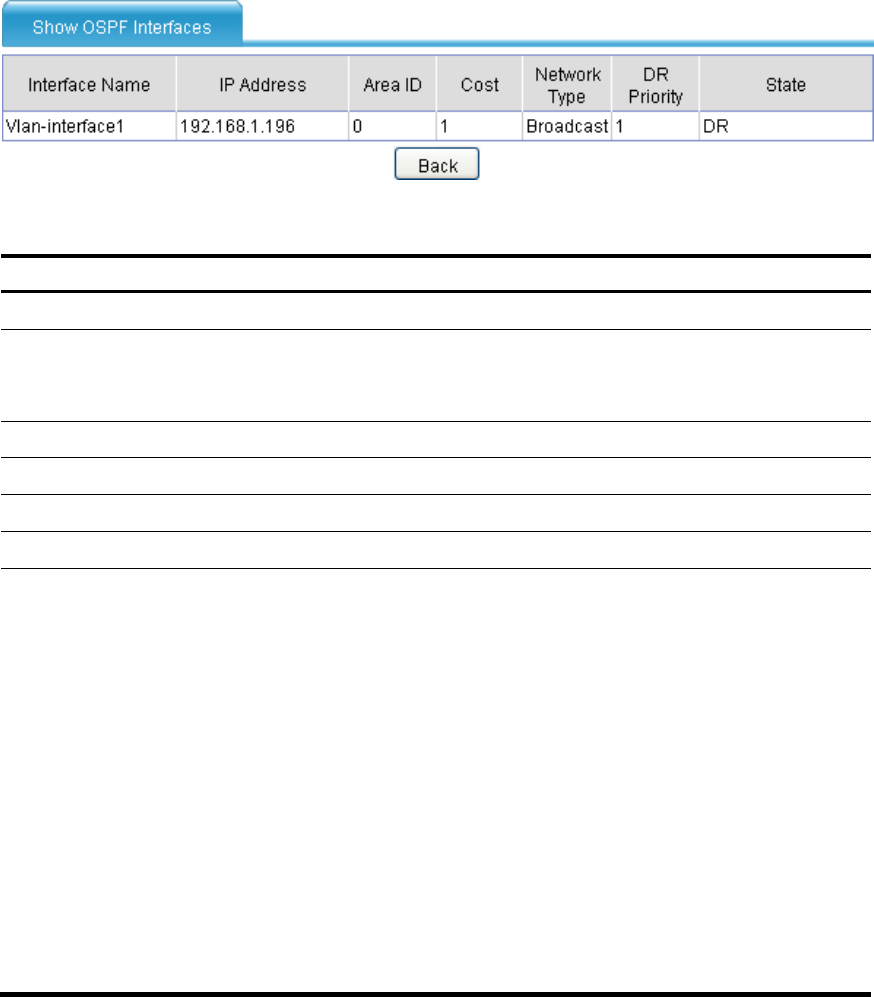

Figure 254 Display OSPF interface information
Table 66 Field description
Field Descri
p
tion
Interface Name Interface name
IP Address
IP address of the interface
In case of IP unnumbered, the IP address of the borrowed interface
is displayed.
Area ID ID of the area to which the interface belongs
Cost Cost for the interface
Network Type Network type for the interface
DR Priority DR priority for the interface
State
Current state of the interface, which can be:
• Down—Indicates that no packet is sent or received through the
interface.
• Loopback
• Waiting—Indicates that the interface starts to send and receive
Hello packets and attempts to find the DR and BDR on the
network.
• P-2-P—Indicates that the interface will send Hello packets at the
hello interval, and attempts to establish adjacency with the peer
router.
• DR—Indicates that the router is a designated router (DR) of the
network.
• BDR—Indicates that the router backup designated router (BDR)
of the network.
• DROther—Indicates that the router is neither a DR nor a BDR of
the network.
Displaying OSPF neighbor information
1. Select Network > Routing Management >OSPF from the navigation tree.
