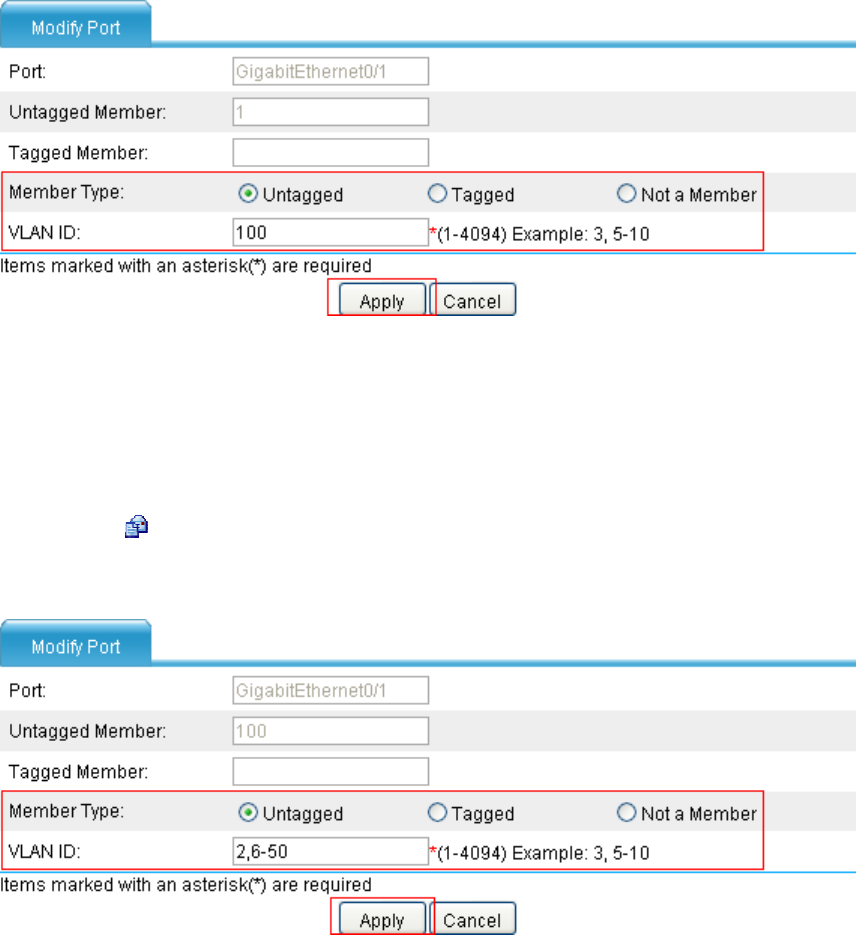

Figure 23 Configuring the PVID of GigabitEthernet 0/1.
• Select the Untagged option for Member Type.
• Enter VLAN ID 100.
• Click Apply.
# Configure GigabitEthernet 0/1 as a hybrid port and assign it to VLAN 2 and VLANs 6 through 50 as
an untagged member.
• Click the icon for GigabitEthernet 0/1 in the Operation column and make the following
configurations, as shown in Figure 24.
Figure 24 Assigning GigabitEthernet 0/1 to VLAN
2 and VLANs 6 through 50 as an untagged member
• Select the Untagged option for Member Type.
• Enter VLAN IDs 2, 6-50.
• Click Apply. A dialog box appears telling you that the access port will be changed into a hybrid
port.
• Click OK in the dialog box.
# Assign GigabitEthernet 0/1 to VLAN 100 as a tagged member.
• Select Network > VLAN > VLAN from the navigation tree.
• Enter 100 in the VLAN Range field.
• Click Select. The page is as shown in Figure 25.
