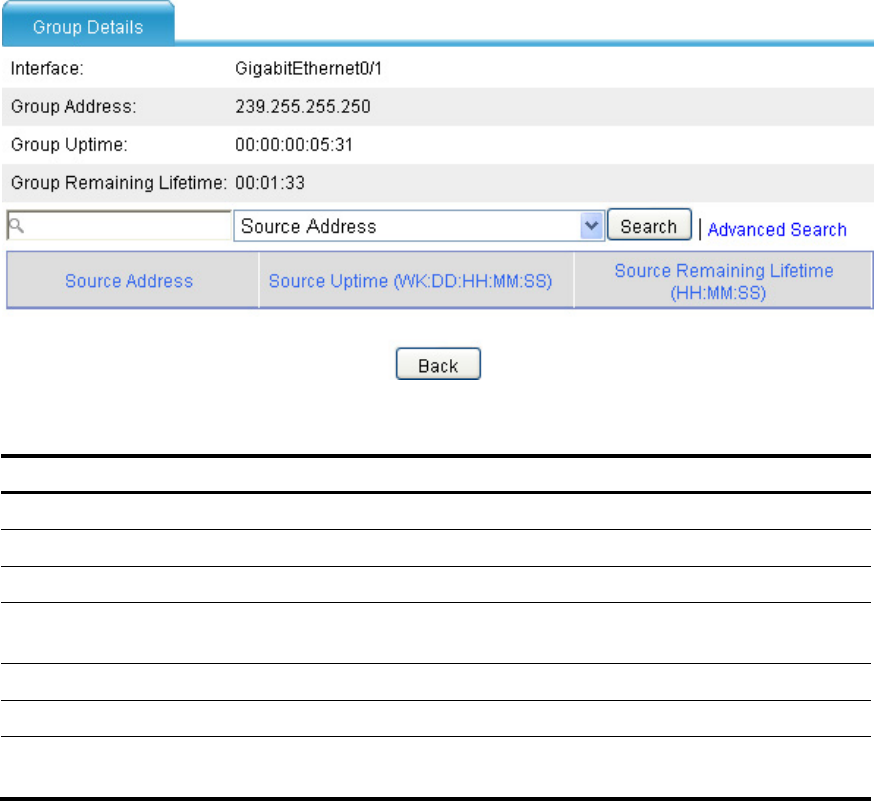

Figure 323 IGMP multicast group information of specific interface
Table 79 Field description
Field Descri
p
tion
Interface Name of the interface that has joined the multicast group
Group address Multicast group address
Group uptime Length of time since the multicast group was reported
Group remaining lifetime
Remaining lifetime of the multicast group. "null" means that the multicast
group times out when all multicast sources of this group time out.
Source address Multicast source address
Source uptime Length of time since the multicast source was reported
Source remaining lifetime
Remaining lifetime of the multicast source; null means that the multicast
source times out when the corresponding multicast group times out.
IGMP configuration example in the Web interface
Network requirements
As shown in Figure 324, receivers receive VOD information through multicast. Receivers of different
organizations form stub networks N1 and N2, and Host A and Host C are receivers in N1 and N2
respectively.
IGMPv2 runs between Firewall A and N1 and between Firewall B/Firewall C and N2. Firewall B serves
as the IGMP querier in N2 because it has a lower IP address.
