The configuration on GigabitEthernet 0/2 is similar to that on GigabitEthernet 0/1. (Details not
shown.)

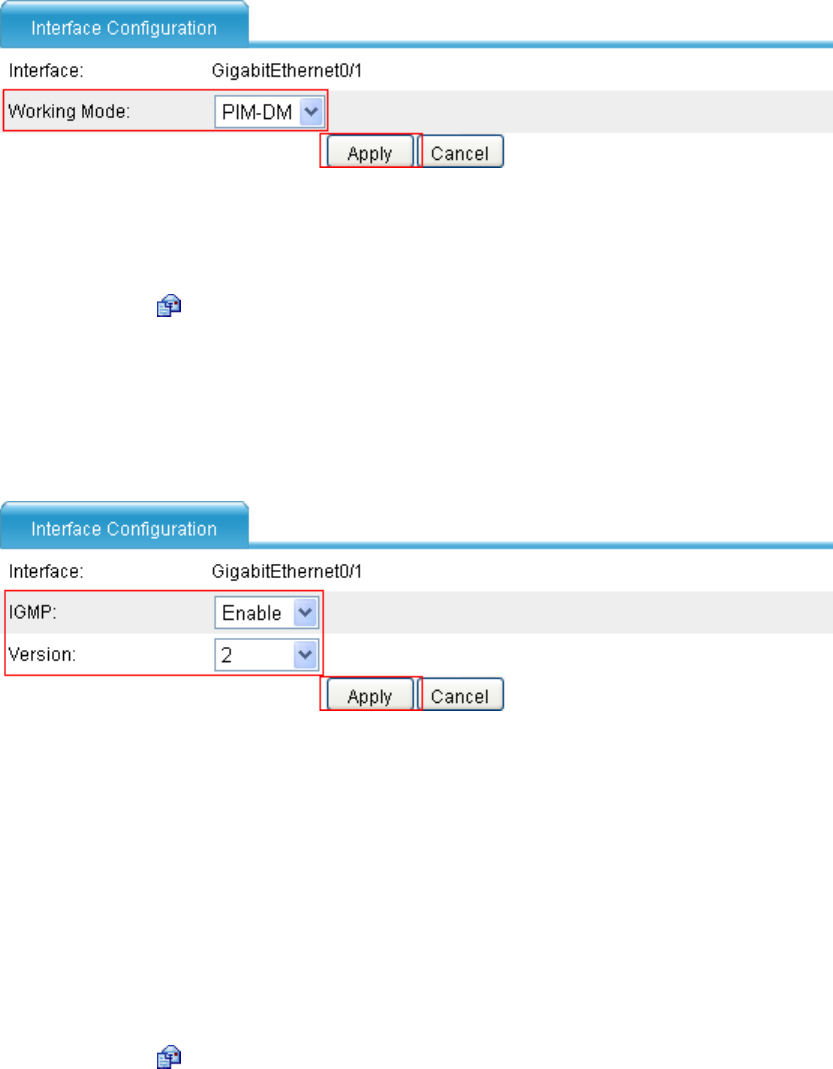

Figure 326 Enabling PIM-DM
3. Enable IGMP on GigabitEthernet 0/1:
a. Select Network > Routing Management > IGMP from the navigation tree to enter the Interface
Configuration page.
b. Click the icon corresponding to GigabitEthernet 0/1 to enter its configuration page, as
shown in Figure 327.
c. Select Enable from the list to enable IGMP.
d. Specify the IGMP version to 2.
e. Click Apply.
Figure 327 Enabling IGMP
Configuring Firewall B
1. Enable IP multicast routing:
a. Select Network > Routing Management > Multicast Routing from the navigation tree to enter
the Global Configuration page.
b. Select Enable from the list to enable multicast routing.
c. Click Apply.
2. Enable PIM-DM on each interface:
a. Select Network > Routing Management > PIM from the navigation tree to enter the Interface
Configuration page.
b. Click the icon corresponding to GigabitEthernet 0/1 to enter its configuration page.
c. Specify the operating mode PIM-DM and click Apply.
The configuration on GigabitEthernet 0/2 is similar to that on GigabitEthernet 0/1. (Details not
shown.)
3. Enable IGMP on GigabitEthernet 0/1:
a. Select Network > Routing Management > IGMP from the navigation tree to enter the Interface
Configuration page.
