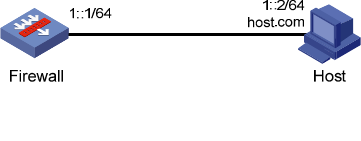

Figure 369 Network diagram
Configuration procedure
# Configure a mapping between host name host.com and IPv6 address 1::2.
<Firewall> system-view
[Firewall] ipv6 host host.com 1::2
# Enable IPv6 packet forwarding.
[Firewall] ipv6
# Use the ping ipv6 host.com command to verify that the Firewall can use static domain name resolution
to resolve domain name host.com into IPv6 address 1::2.
[Firewall] ping ipv6 host.com
PING host.com (1::2):
56 data bytes, press CTRL_C to break
Reply from 1::2
bytes=56 Sequence=1 hop limit=128 time = 3 ms
Reply from 1::2
bytes=56 Sequence=2 hop limit=128 time = 1 ms
Reply from 1::2
bytes=56 Sequence=3 hop limit=128 time = 1 ms
Reply from 1::2
bytes=56 Sequence=4 hop limit=128 time = 2 ms
Reply from 1::2
bytes=56 Sequence=5 hop limit=128 time = 2 ms
--- host.com ping statistics ---
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/1/3 ms
Dynamic domain name resolution configuration example
Network requirements
As shown in Figure 370, the Firewall wants to access the host by using an easy-to-remember domain
name rather than an IPv6 address. The IPv6 address of the DNS server is 2::2/64 and the server has a
com domain, which stores the mapping between domain name host and IPv6 address 1::1/64.
Configure dynamic domain name resolution and the domain name suffix com on the Firewall that serves
as a DNS client so that the Firewall can use domain name host to access the host with the domain name
host.com and the IPv6 address 1::1/64.
