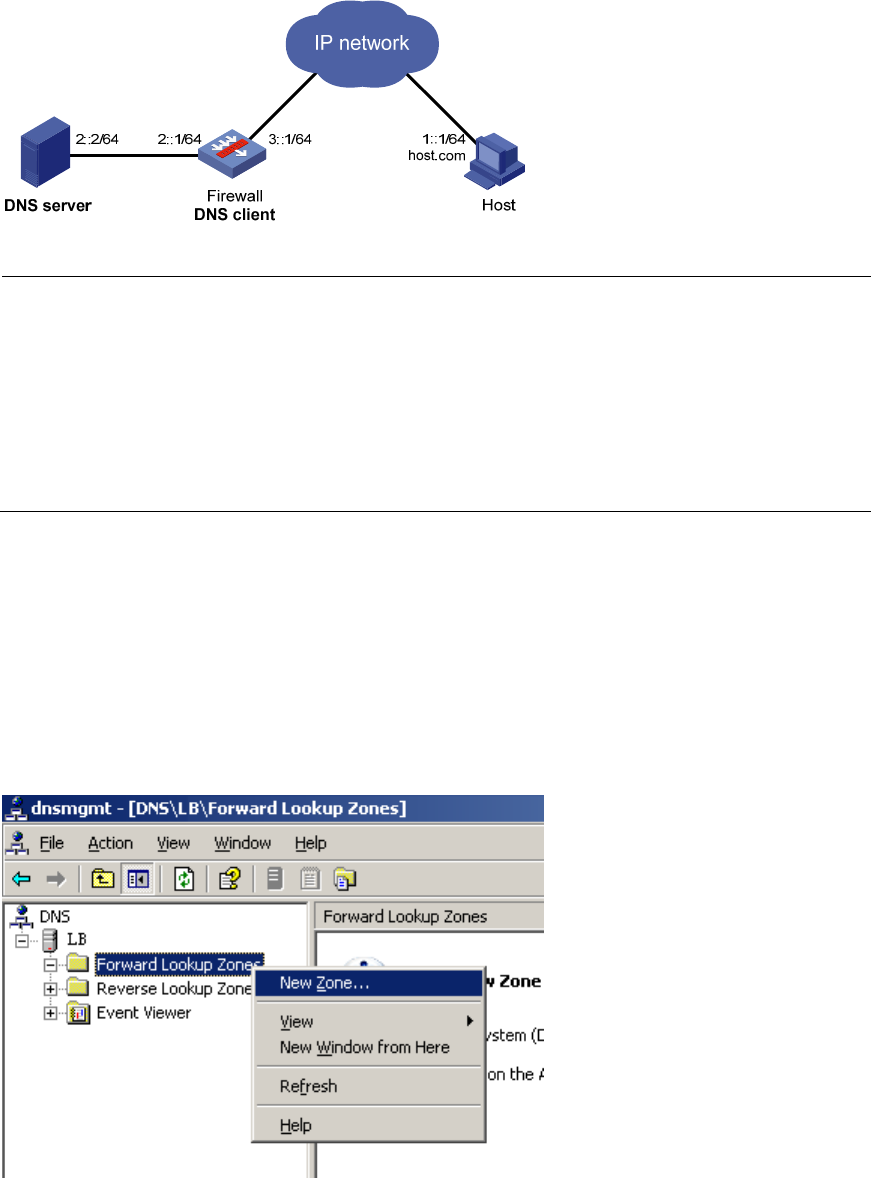

Figure 370 Network diagram
NOTE:
• Before performing the following configuration, make sure that the Firewall and the host are accessible to
each another via available routes, and the IPv6 addresses of the interfaces are configured as
shown Figure 370.
• This co
nfiguration may vary with DNS servers. The following configuration is performed on a PC
running Windows Server 2003. Make sure that the DNS server supports the IPv6 DNS function so tha
t
the server can process IPv6 DNS packets, and the interfaces of the DNS server can forward IPv6
packets.
Configuring the DNS server
# Enter the DNS server configuration page.
Select Start > Programs > Administrative Tools > DNS.
# Create zone com.
As shown in Figure 371, r
ight c
lick Forward Lookup Zones, select New zone, and then follow the
instructions to create a new zone named com.
Figure 371 Creating a zone
# Create a mapping between the host name and the IPv6 address.
As shown in Figure 372, right c
lick zone com.
