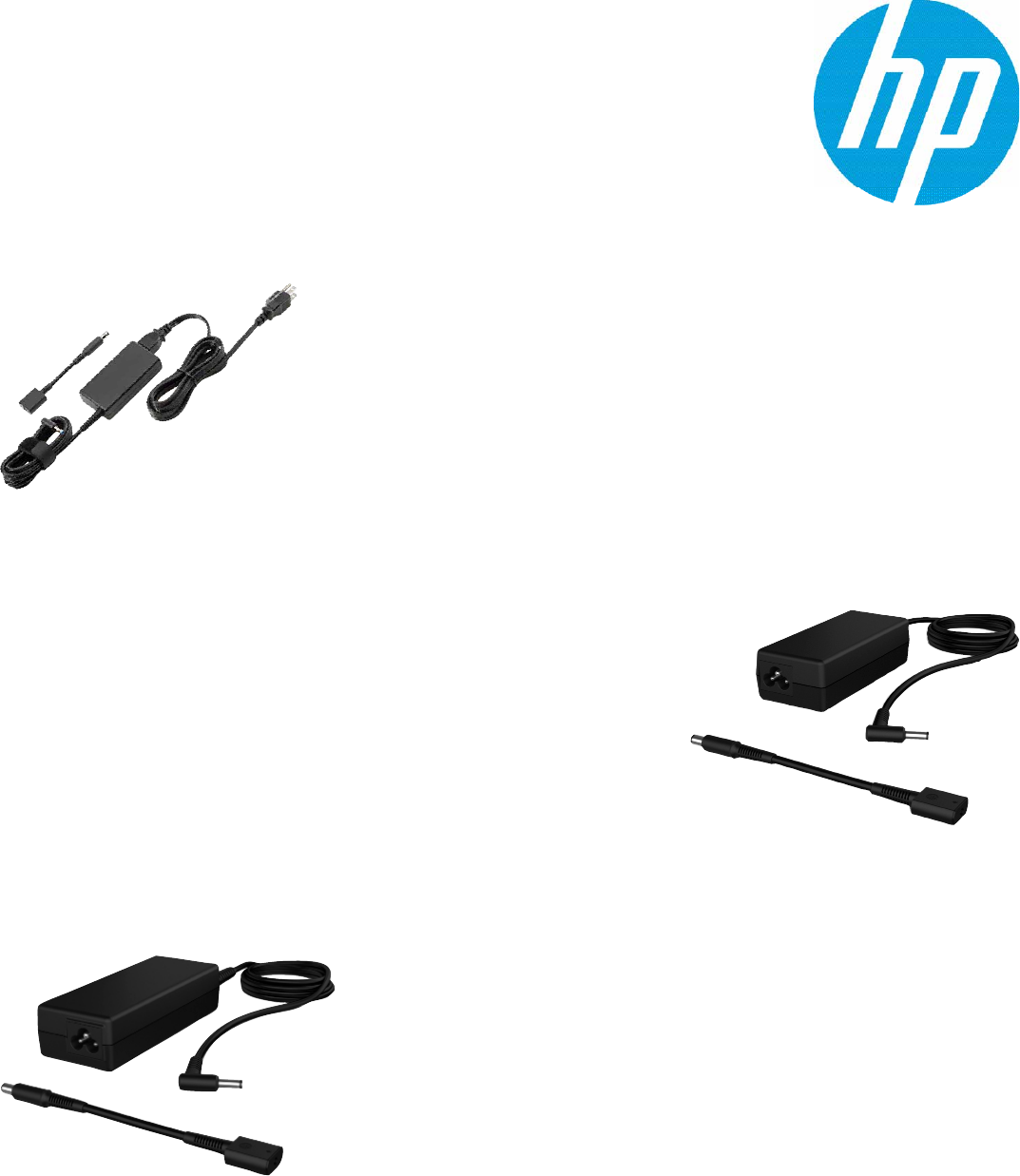

HP 45W Smart AC Adapter (4.5mm)

Enjoy compatibility with current and legacy devices. The 4.5 mm connector supports evolving

smaller form factors, and the included 7.4 mm connector cable enables charging support for

earlier platforms.

Get the peace of mind of a one-year limited warranty. Additional support is available (North

America only) seven days a week, 24 hours a day by phone as well as through online support

forums.

HP 65W Smart AC Adapter (4.5mm)

Easy to use

Plug one end of the adapter into your HP Business Notebook or HP Docking Station

and the other

end into a standard outlet.

Power up wherever you work

Leave a handy spare at home or take the compact adapter with you in your notebook’s carrying

case.

World-class support

Rest easy with a one-year limited warranty.

Family data sheet

HP Smart AC Adapters

Add an additional adapter and always have one available in the oce or at home

HP 90W Smart AC Adapter (4.5mm)

Controlled and ecient ow

Operate with condence with optimal performance using smart-pin technology and reduce the

risk of power surges, while drawing only minimal power as needed.

Connection for today and yesterday

Connection versatility with a specially designed dongle allowing for simple conversion from the

new standard 4.5mm connector to HP predecessor notebooks with 7.4mm connectors

The perfect right turn

Tight access made convenient – the new right-angled (90°) 4.5mm connector allows for

connecting in limited spaces and reduces cord bending providing better cable management and

longevity.

Summary of content (5 pages)

PAGE 1
Family data sheet HP Smart AC Adapters Add an additional adapter and always have one available in the office or at home HP 45W Smart AC Adapter (4.5mm) Enjoy compatibility with current and legacy devices. The 4.5 mm connector supports evolving smaller form factors, and the included 7.4 mm connector cable enables charging support for earlier platforms. Get the peace of mind of a one-year limited warranty.
PAGE 2
Data sheet | HP Smart AC Adapters HP 150W Smart AC Adapter (4.5mm) Easy to use Plug one end of the adapter into your HP Mobile Workstation or HP Docking Station1 and the other end into a standard outlet. The included 4.5mm to 7.4mm smart cable allows you to carry one adapter for new and legacy platforms. Take it with you Power up wherever you work. The compact, reliable adapter fits easily in your notebook’s carrying case and is 50% lighter than its previous generation model.
PAGE 3
Data sheet | HP Smart AC Adapters Specifications HP 45W Smart AC Adapter HP 65W Smart AC Adapter H6Y88AA H6Y89AA Dimensions 3.77 x 1.95 x .88 in (96 x 49.5 x 22.4 mm) 4.17 x 1.85 x 1.1 in (106 x 47 x 28 mm) Weight 7.09 oz (201 g) 0.62 lb (280 g) Part number Input 90 to 265 VAC 90 to 265 VAC Input efficieny 87% min at 115 VAC 84% min at 115 VAC Input frequency range 47 to 63 Hz Input AC current 1.4 A at 90 VAC 1.7 A at 90 VAC, 0.85 A at 180 VAC Output power 45W 65W DC Output 18.
PAGE 4
Data sheet | HP Smart AC Adapters Specifications HP 90W Smart AC Adapter HP 150W 4.5mm Smart AC Adapter H6Y90AA W2F74AA Dimensions 5.00 x 1.97 x 1.1 in (127 x 50 x 29 mm) 6.02 x 25 x 0.88 in (15 x 66 x22 mm) Weight 0.82 lb (370 g) 0.705 lb (320g) Part number Input 100 to 240 VAC 90 to 265 VAC RMS. Input efficieny 88% at 115VAC 89% at 230 VAC 88% min at 115 VAC Input frequency range 47 to 63 Hz 47 – 63 Hz AC. Input AC current 1.5 A at 90 VAC, 0.75 A at 180 VAC PFC Version 2.
PAGE 5
Data sheet | HP Smart AC Adapters Specifications Part number HP 150W Slim Smart AC Adapter (4.5mm) HP 200W 4.5mm Smart AC Adapter 4SC18AA W2F75AA Dimensions 6.02 x 25 x 0.88 in (138 x 66 x 22 mm) 6.77 x 3.77 x1 in (172 x 96 x 25.4 mm) Weight 0.7 lb (320 g) 1.92 lb (875 g) 88% at 115 Vac and 89% at 230Vac 88% at 115 VAC input and 89% at 230 VAC Input Input efficieny 90 to 265 VAC RMS. Input frequency range 47 ~ 63 Hz 47 – 63 Hz AC. Input AC current 2.7 A at 90 Vac and Maximum Load 2.
