HP Cluster Platform 435762-B21 Cable Management Bracket Installation Guide

Note:
This bracket is designed to support different types of cables, from a 5/16-inch (7.9-mm) minimum
diameter to a 5/8-inch (15.9-mm) maximum diameter. Consult the documentation supplied with
your cluster before installing the brackets and routing the cables.
1.5 Kit Contents
The 435762-B21 cable management bracket kit contains the following components:
• The bracket shown in Figure 1-1.

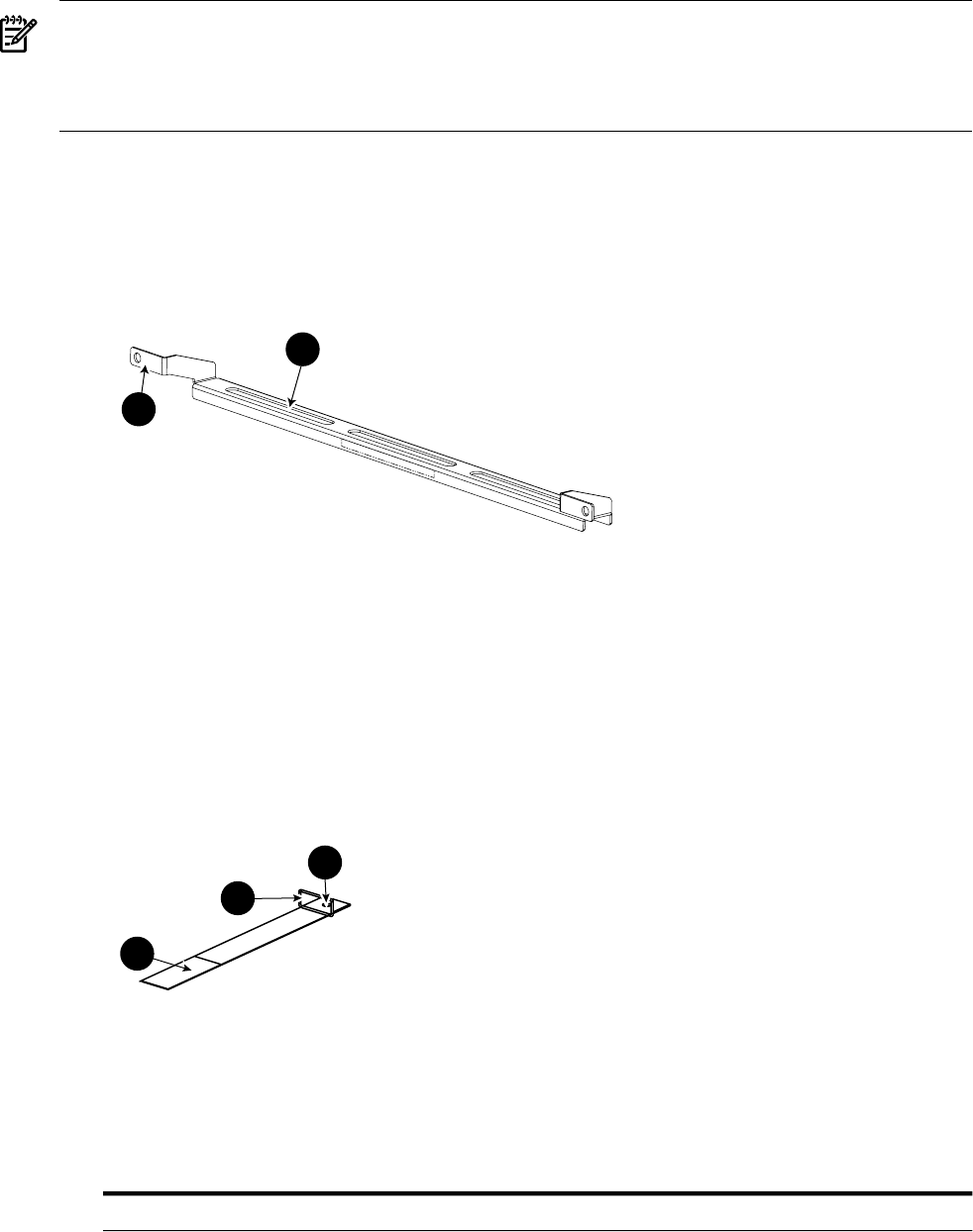

Figure 1-1 435762-B21 Cable Management Bracket
1
2
The bracket is adaptable for use with several models of HP Cluster Platform and might also
be applicable in other cable management applications (consult your hardware installation
documentation). The following bracket features are called out in Figure 1-1:
1. Mounting holes, which you use to attach the bracket to the rack.
2. The mounting face, which contains three mounting slots. You attach cable management
straps to this part of the bracket.
• One 3.5-inch (89-mm) fabric strap (Figure 1-2) that mounts on the bracket.
Figure 1-2 Fabric Strap
2
1
3
The strap has a hook-and-loop fabric closure (callout 1) and a metal D-ring (callout 2) that
is designed to secure a single interconnect cable. The strap is secured to the bracket through
a metal grommet (callout 3).
• The fasteners that are specified in Table 1-2.
Table 1-2 Fasteners
DescriptionTorqueFormatSizeQty.
Machine screw, pan-head. For use the 10-32 cage nuts.30 in/lbPhillips
(Posidrive)
10-32 x .375-inch2
Machine screw, pan-head. For use with the cage nut
to attach the strap to the bracket.
30 in/lbPhillips
(Posidrive)
M6 x 16 mm1
1.5 Kit Contents 7
