HP Cluster Platform 435762-B21 Cable Management Bracket Installation Guide

2 Installing the Kit
At the time of publication, these installation instructions apply to the specific HP servers that
are identified in Section 1.1. This bracket might also be adapted for other cable management
uses, as specified in the installation documentation for HP Cluster Platform models. Figure 2-1
shows the two mounting positions for the bracket, and the location of the two case nuts if the
server's rail kit is already installed in the rack. The correct installation sequence for both the
inward and outward mounting of the kit is:
1. Hold the bracket so that it aligns with the appropriate U location on the left (callout 1) and
right side (callout 2) of the rack.
2. Install the machine screws (callout 3) and cage nutes (callout 4) for the cable management
bracket (callout 5).
3. Install the rail kit tracks in the rack.
4. Install the server in its rail kit.

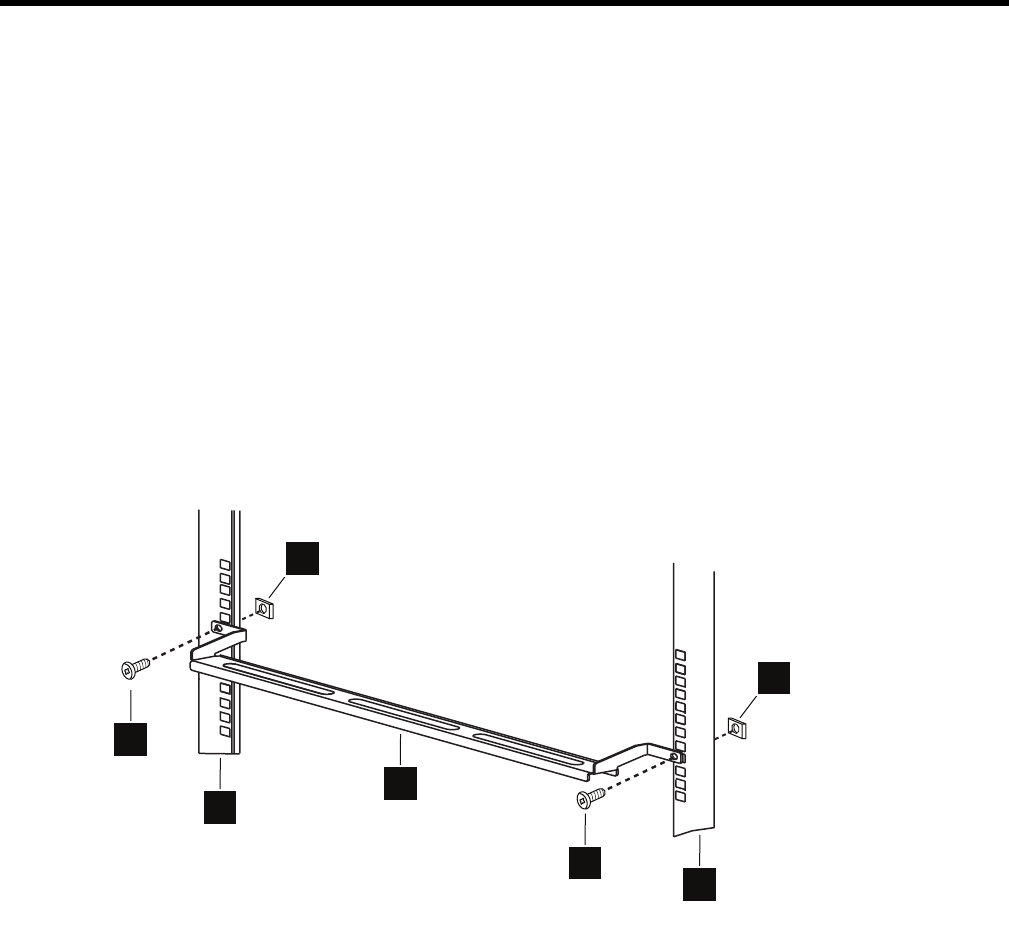

Figure 2-1 Outer Bracket Orientation
4
3
3
5
2
1
4
Figure 2-2 shows an inward orientation of the bracket, and the location of the two cage nuts that
secure the bracket to the rack. The installation sequence is the same as that used for the outward
bracket orientation.
