Chapter 9: Configure PSFS Filesystems 100

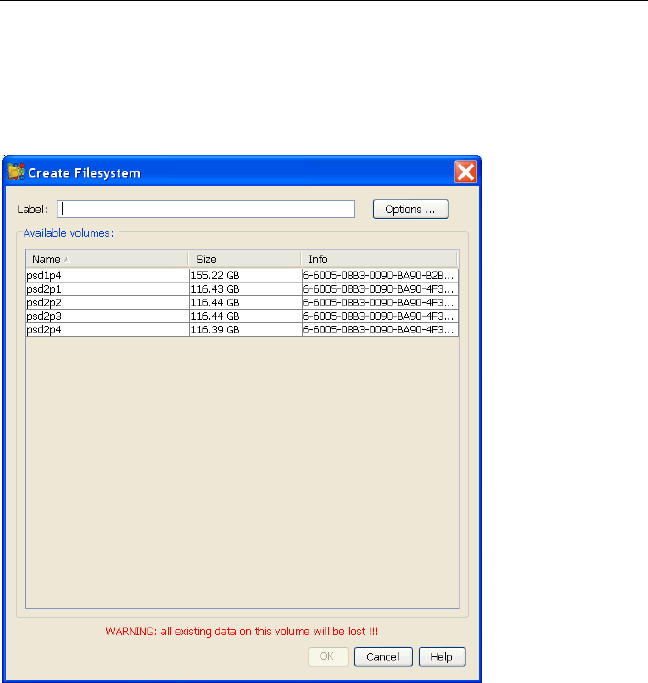

Create a Filesystem from the Management Console
To create a filesystem, select Cluster > Add > Add Filesystem on the HP
CFS Management Console, or click the Filesystem icon on the toolbar.
Label: Type a label that identifies the filesystem.
NOTE: Although the “Disk Management” pane of the Microsoft
Management Console (MMC) limits volume labels on non-NTFS
filesystems to 11 characters, the HP Clustered File System tools
allow PSFS filesystem labels to be up to 32 characters long.
Available Volumes: This part of the window lists the basic or dynamic
volumes that are currently unused. Subdevices belonging to unimported
volumes that are on imported disks are also included. Select one of these
volumes for the filesystem. The minimum size for a PSFS filesystem is 64
MB.
