Chapter 9: Configure PSFS Filesystems 113
Extend a Mounted Filesystem
If the Volume allocation display shows that there is space remaining on
the volume, you can use the “Extend Filesystem” option on the Properties
window to increase the size of the PSFS filesystem to the maximum size

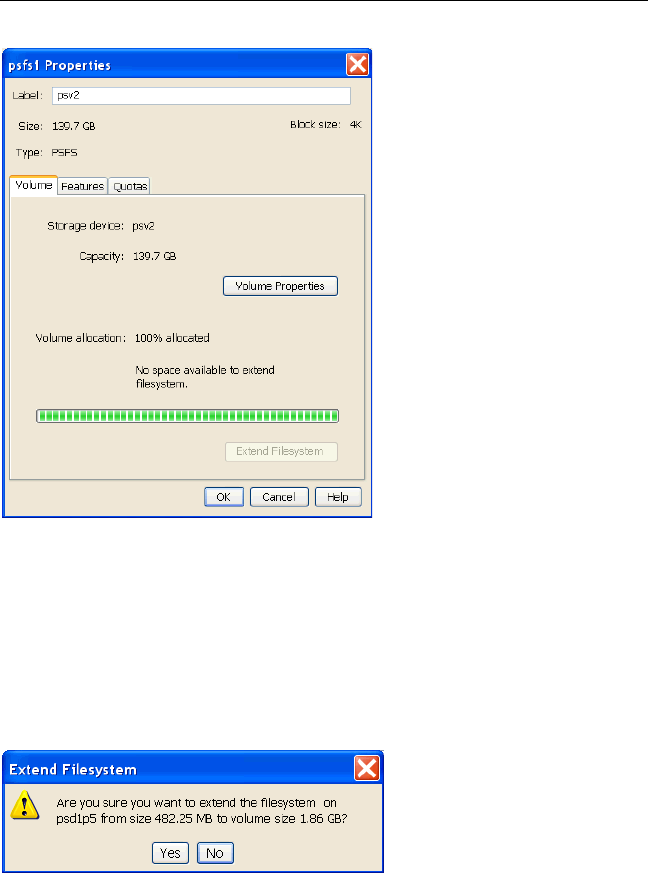

of the volume. When you click on the Extend Filesystem button, you will
see a warning such as the following. When you click Yes, HP Clustered
File System will extend the filesystem to use all of the available space.
If you want to increase the size of both the volume and the filesystem, use
the Extend Filesystem option. For dynamic volumes, see “Extend a
Dynamic Volume” on page 82. For basic volumes, see “Extend a Basic
Volume and Its Filesystem” on page 116.
