Chapter 13: Configure Event Notifiers and View Events 158

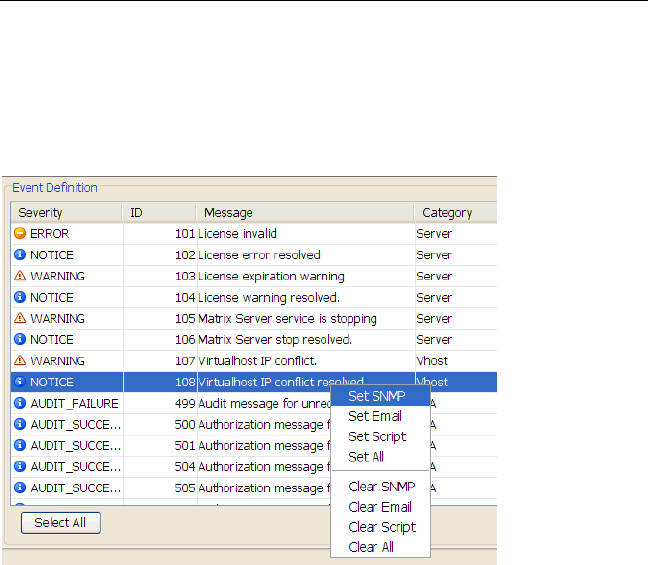

• Using the checkboxes, check or uncheck the appropriate messages for
each service.
• Select a message row, right-click, and then set or clear that message for
the appropriate notifier services.
To add or remove notifier events from the command line, use these
commands. If you do not specify a service, the events will be added or
removed from all services. You can specify individual event IDs or a
range of IDs to be added. Use commas to separate the values, for
example: 100, 300-400,555.
mx eventnotifier addevents [--snmp] [--email] [--script] <event
IDs or ID range>
mx eventnotifier removeevents [--snmp] [--email] [--script]
<event IDs or ID range>
Configure the SNMP Notifier Service
To configure the SNMP notifier service, select the SNMP Trap
Forwarding Settings tab. This tab contains an SNMP Trap Forwarding
Table that specifies the IP address and community string needed to access
SNMP targets. You can configure up to 32 targets.
