Chapter 13: Configure Event Notifiers and View Events 159

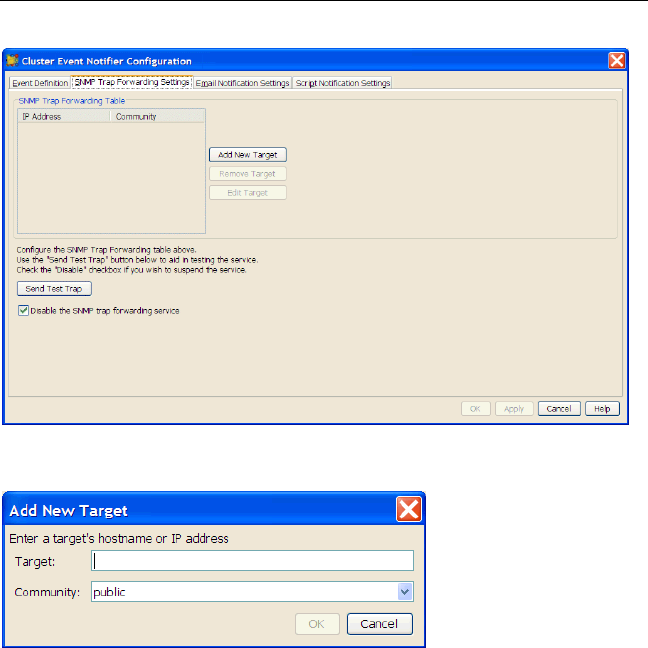

To define a new SNMP trap forwarding target, click Add New Target.
Target. Enter either the hostname or the IP address of the SNMP trap
forwarding target. The trap-forwarding destination port is the IANA
registered port for snmptrap (162/udp).
Community. Enter the community string that is used to access the target.
The default is public.
Disable the SNMP trap forwarding service. This checkbox can be used
to enable or disable the service as necessary.
After configuring the new target, click the Send Test Trap button to test
access to the target.
Traps are sent as SNMP v1 traps by the server that logged the event. The
trap ID is the HP Clustered File System message ID.
