Chapter 14: Cluster Operations on the Applications Tab 168
a device monitor, the application will use the same name as the device
monitor.

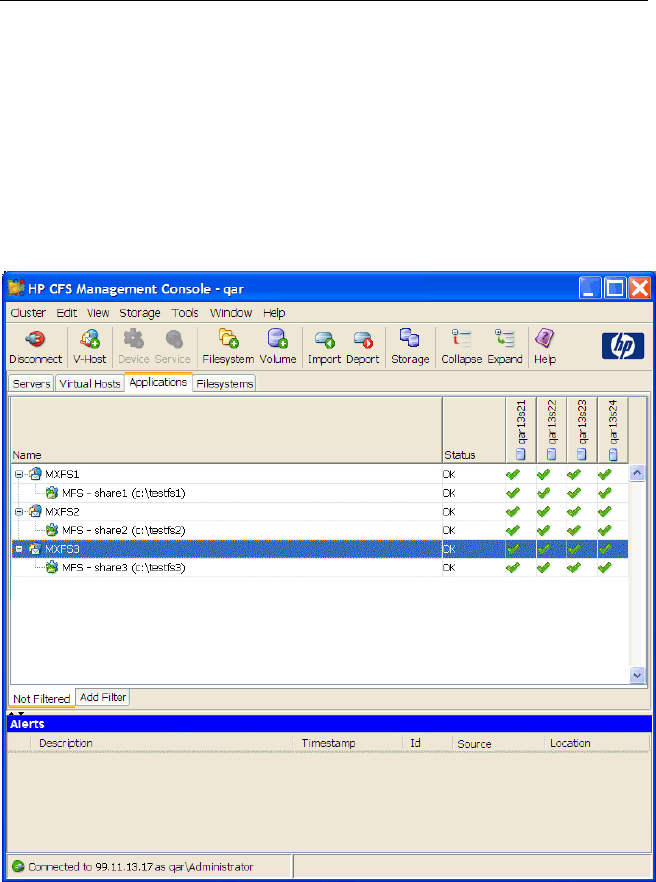

The Applications Tab
The Management Console lists applications and their associated
resources (virtual hosts, service and device monitors, CIFS virtual
servers) on the Applications tab. The applications and resources appear
in the rows of the table. (Double-click on a resource to see its properties.)
The servers on which the resources are configured appear in the columns.
You can change the order of the server columns by dragging a column to
another location. You can also resize the columns.
