Chapter 14: Cluster Operations on the Applications Tab 175
reordered as necessary. If the monitor was multi-active, it will remain
active on any other servers on which it is configured.
Menu Operations
Applications
The following operations affect all entities associated with an HP
Clustered File System application. These operations can also be
performed from the command line, as described in the HP StorageWorks
Clustered File System Command Reference Guide.

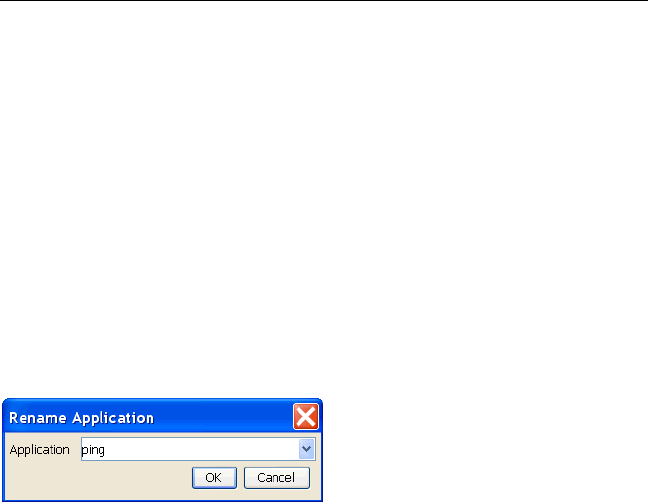

Rename an application: Right-click on the application cell (in the Name
column) and then specify the new name on the Rename Application
dialog.
Enable an application on a server: Left-click on the cell corresponding to
the application and server. Then right-click and select Enable.
Disable an application on a server: Left-click on the cell corresponding
to the application and server. Then right-click and select Disable.
Servers
To add a resource such as a service or device monitor to a server, left-click
in the cell for that server and resource, right-click, and select Add To
Resource.
To remove a resource such as a service or device monitor from a server,
left-click in the cell for that server and resource, right-click, and select
Remove From Server.
Virtual Hosts
When you right-click on a virtual host, you can perform the same
operations as are available on the Servers or Virtual Hosts tab.
• Re-host, or move, the virtual host to another node in the cluster.
