Chapter 16: Configure Service Monitors 196

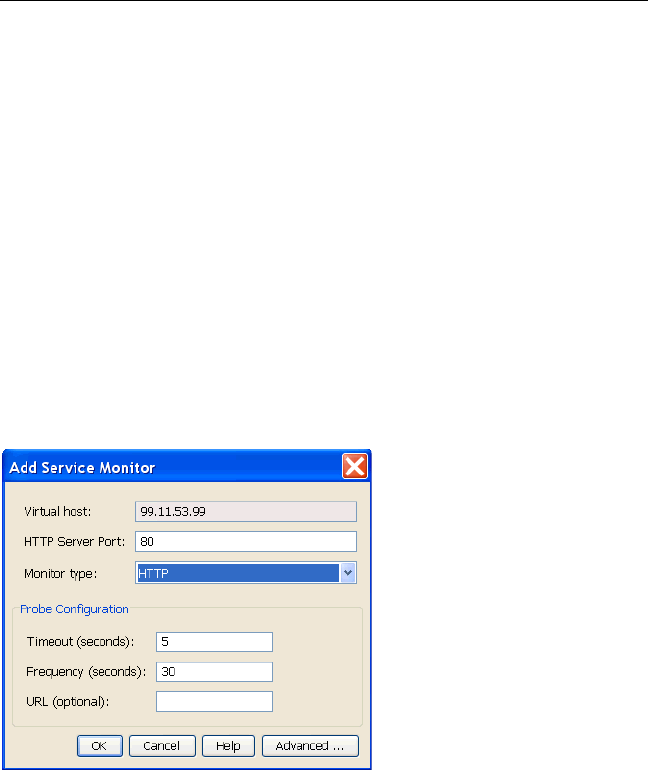

Add or Modify a Service Monitor
Adding a service monitor configures HP Clustered File System
monitoring only. It does not configure the service itself.
To add or update a service monitor from the HP CFS Management
Console, select the appropriate option:
• To add a new service monitor, first select the virtual host for the
monitor on either the Servers or Virtual Hosts window, then right-
click and select Add Service Monitor (or click the Service icon on the
toolbar). Then configure the monitor on the Add Service Monitor
window.
• To modify an existing service monitor, select that monitor on either
the Servers or Virtual Hosts window, right-click, and select Properties.
Then make your changes on the Service Monitor Properties window.
Virtual Host: The service monitor is assigned to this virtual host.
Server Port: HP Clustered File System supplies the default port number
for the service you select. If your service uses a port other than the
default, type that port number here.
NOTE: This field does not appear if you are creating an NTSERVICE
monitor. Instead, you will be asked for the name of the NT service
that you want to monitor.
