Chapter 17: Configure Device Monitors 213
Add or Modify a Device Monitor
Select the appropriate option from the HP CFS Management Console:
• To add a new device monitor, select the server to be associated with
the monitor from the Servers window, right-click, and select Add
Device Monitor (or click the Device icon on the toolbar). Then

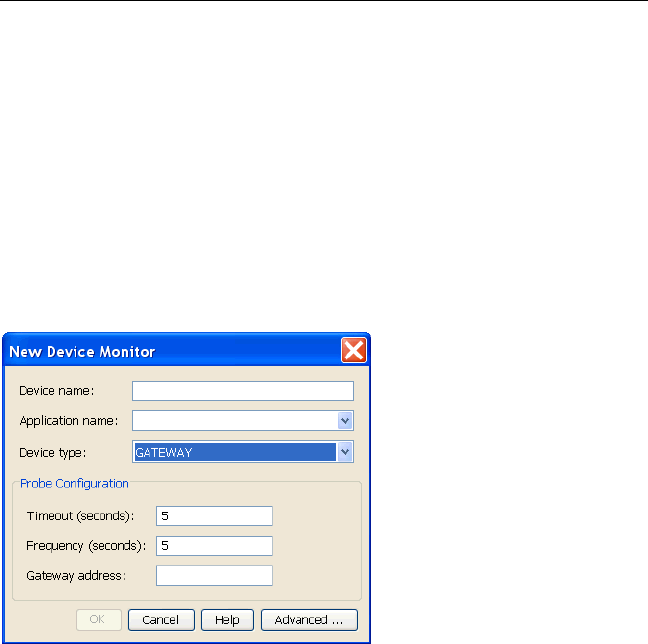

configure the device monitor on the New Device Monitor window.
• To update an existing device monitor, select the monitor on the
Servers window, right-click, and select Properties. Then make your
changes on the Device Monitor Properties window.
Device Name: Type the name of the device monitor. You can use up to 32
alphanumeric characters.
NOTE: This field does not appear if you are creating an NTSERVICE
monitor. Instead, you will be asked for the name of the NT service
that you want to monitor.
Application name: Specify the name of the HP Clustered File System
application to be associated with this device monitor. HP Clustered File
System applications are used to group related virtual hosts, service
monitors, and device monitors on the Applications tab. If you leave this
field blank, HP Clustered File System will use the name of the device
monitor as the application name.
