Chapter 17: Configure Device Monitors 215
decimal IP address of the hostname for the server, and <monitor_name>
is the name assigned to the
SHARED_FILESYSTEM device monitor.
•
CUSTOM monitor. Specify the pathname to the probe script to be used
with the monitor.

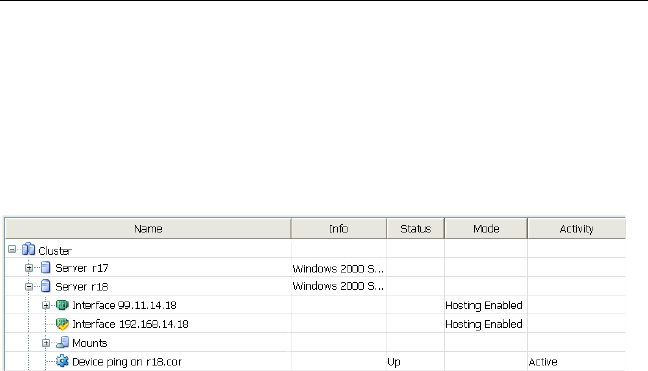

The following example shows a
device monitor created on the server svr1.
To add a device monitor from the command line, use this command:
mx device add --servers <server1>,<server2>,... [--type
CUSTOM|DISK|GATEWAY|SHARED_FILESYSTEM| NTSERVICE] [--timeout
<seconds> [--frequency <seconds>] [--parameters <parameters>]
[<other_arguments>] <devicename> ...
Advanced Settings for Device Monitors
You can use the advanced settings to fine-tune device monitors. To access
the advanced settings, select the Advanced button on the Add Device
Monitor or Device Monitor Properties window.
