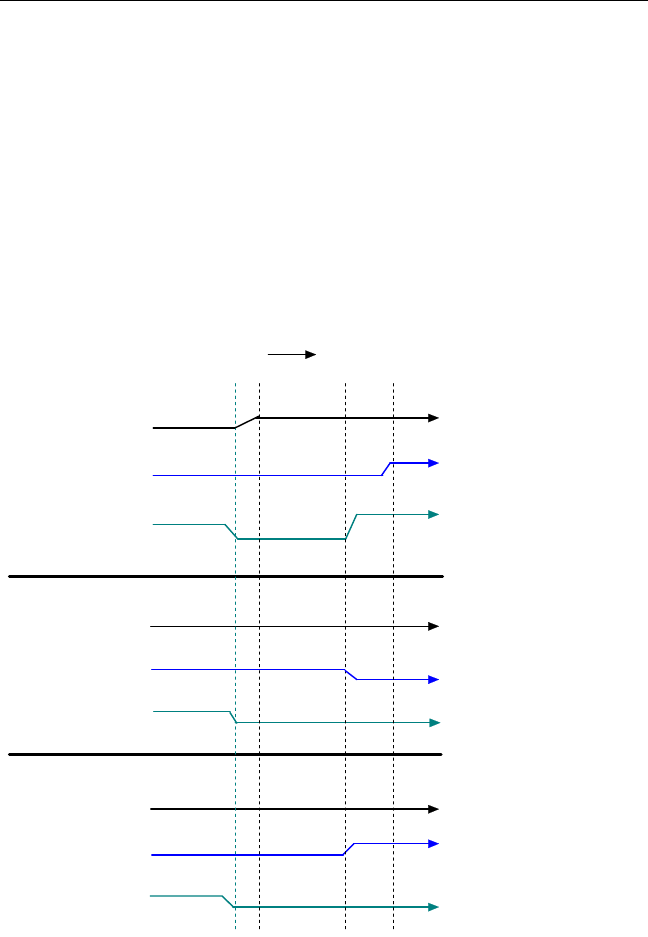

The following examples show state transitions for a service monitor that
uses the default values for autorecovery, priority, and serial script
ordering. Start and Stop scripts are also defined for the monitor. The
virtual host associated with the monitor has a primary interface and two
backup interfaces.
The first example shows the state transitions that occur at startup from an
unknown state. At i1, all instances of the monitor have completed
stopping. At i2, the virtual host is configured on the Primary. At i3, the
monitor start script begins on the Primary and probing begins on the
backups. At i4, probing begins on the Primary.
Primary
First Bac k up
Second Backup
Vhost status
Probe status
Monitor activity
inactive
unknown
stopping
active
up
undefined
active
starting
Vhost status
Probe status
Monitor activity
inactive
unknown
stopping
undefined
inactive
down
Vhost status
Probe status
Monitor activity
inactive
unknown
undefined
inactive
up
stopping
i1 i2 i3 i4
Time
