Chapter 19: SAN Maintenance 242
Membership Partition States

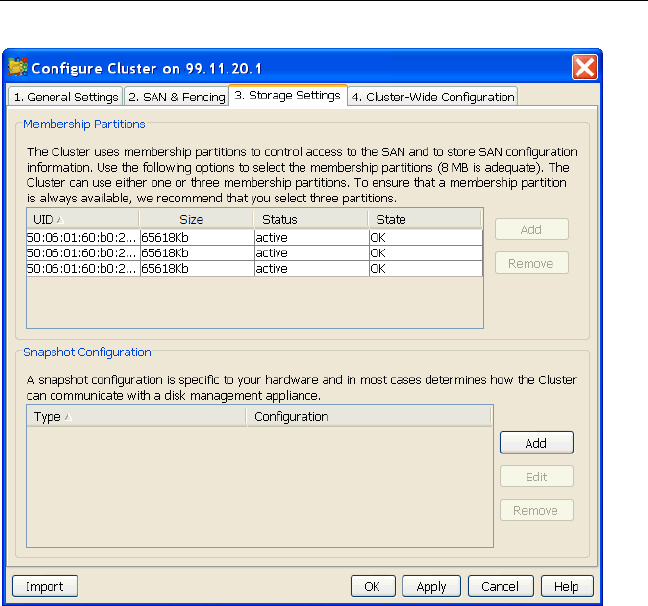

The Storage Settings tab reports the state of each membership partition.
The possible states are:
• OK. The membership partition is functioning correctly.
• FENCED. The server has been fenced and cannot access the SAN. Start
HP Clustered File System if it is not running or reboot the server.
• NOT_FOUND. HP Clustered File System cannot find the device
containing the membership partition. Check the device for hardware
problems. If the device is not working or has been removed from the
SAN, replace the membership partition.
• INACCESSIBLE. HP Clustered File System can find the device
containing the membership partition, but it cannot read or write to it.
