Chapter 4: Cluster Administration 27

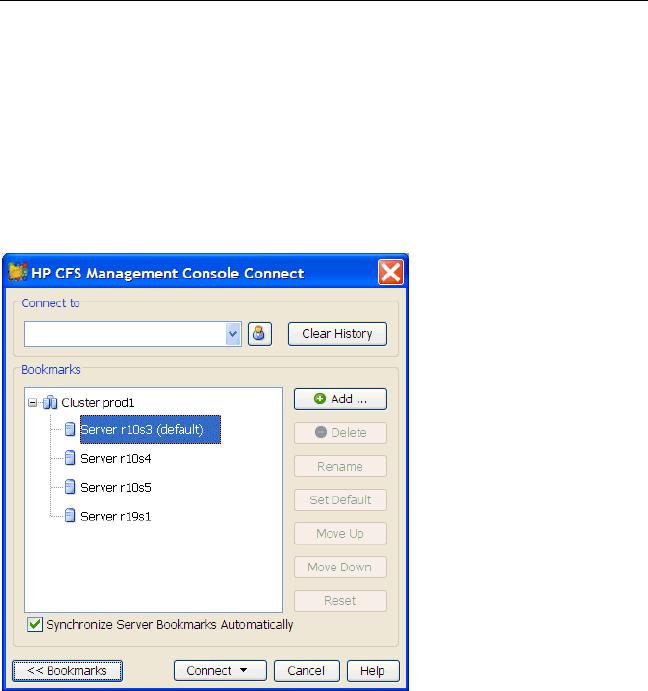

Manage Bookmarks
The Bookmarks display lists the cluster connections that are configured in
the .matrixrc file. Click the Bookmarks button on the HP Clustered File
System Connect window to display the current list of bookmarks and the
available options.You can connect to any of the servers or clusters in the
list. Double click on the server or cluster, or select it and then click on
either Connect or Configure.
The bookmark options are:
• Add. This option opens the Add Bookmark dialog, allowing you to
configure a new bookmark.
• Delete. If a cluster is selected, this option removes the bookmark for
that cluster. If a server is selected, the option removes just that server
from the bookmark.
• Rename. If a cluster is selected, this option allows you to rename that
cluster. If a server is selected, you can replace that server with a
different server in the cluster. After typing the new name, press Enter.
