Chapter 4: Cluster Administration 33

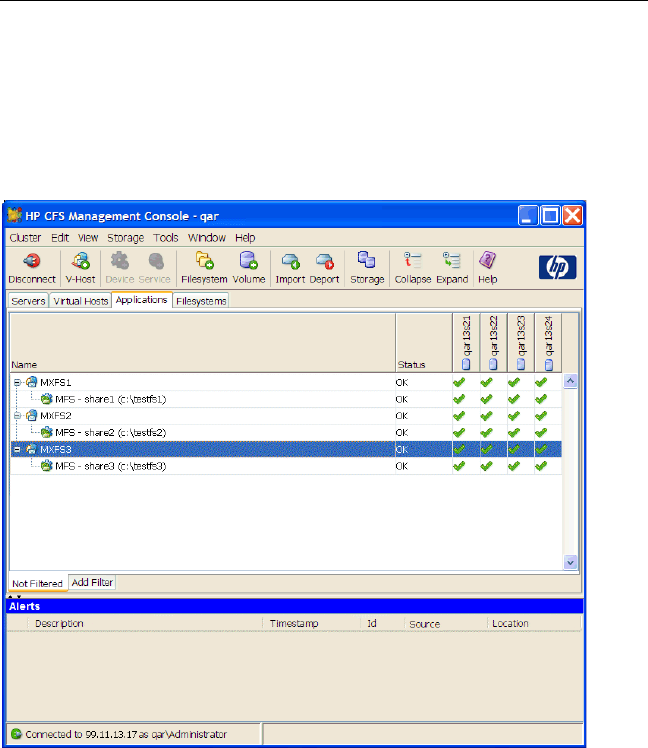

Applications Tab
This view shows the application monitors configured in the cluster and
provides the ability to manage and monitor them from a single screen.
The tab uses a table format, with a column for each server in the cluster.
The application monitors appear in the rows of the table.
You can reorder the information on this tab or limit the information that is
displayed. You can also modify the configuration of a virtual host, move a
virtual host to another server, modify the configuration of a monitor, and
perform other monitor operations. For more information, see Chapter 8,
“Cluster Operations on the Applications Tab” on page 167.
