Chapter 4: Cluster Administration 35

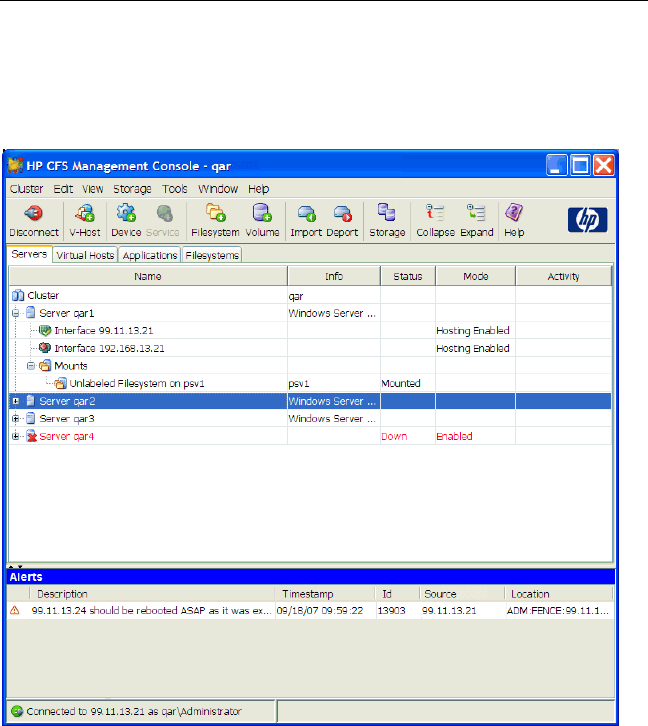

Cluster Alerts
The Alerts section at the bottom of theHP CFS Management Console
window lists errors that have occurred in cluster operations.
Double click on an alert message to see all of the information about the
alert. For alerts affecting cluster components such as servers or monitors,
you can double-click in the Source column to highlight the source of the
error on the main Management Console window.
You can view alerts for a particular cluster component such as a server,
network interface, or monitor by select the component, right-clicking, and
then selecting View Alerts.
