Chapter 5: Configure Servers 51
Supported HP Clustered File System Features
HP Clustered File System provides device monitors, service monitors,
and notifiers. The license agreement for each server determines which
features are supported on that server. You can use the Display Features
option on the HP CFS Management Console to determine the supported
features for a particular server. Select the server on the Servers window,
right-click, and select View Features.

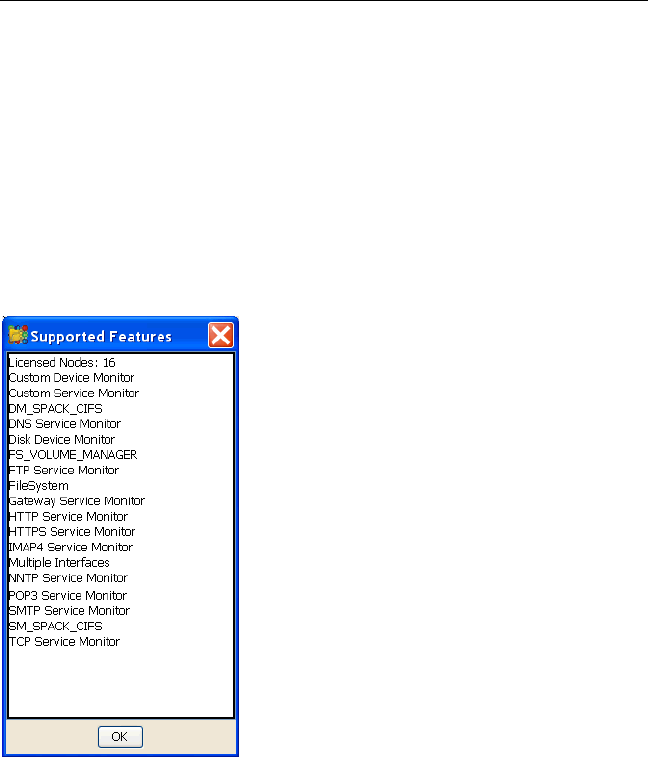

The Supported Features window lists all of the HP Clustered File System
features. Any features not supported by your license are greyed out.
Limit the Servers That Can Join a Cluster
The network secret key controls server access to the cluster. When you
create a cluster configuration, you will specify a password that is used as
the network secret key. Servers must have this password to join the
cluster. When you add a new server to the cluster and import the cluster
configuration to it, the network secret key will be included. See the HP
StorageWorks Clustered File System Installation Guide or Setup Guide,
depending on your product, for more information.
