Chapter 7: Configure the SAN 68
Local Disk Information

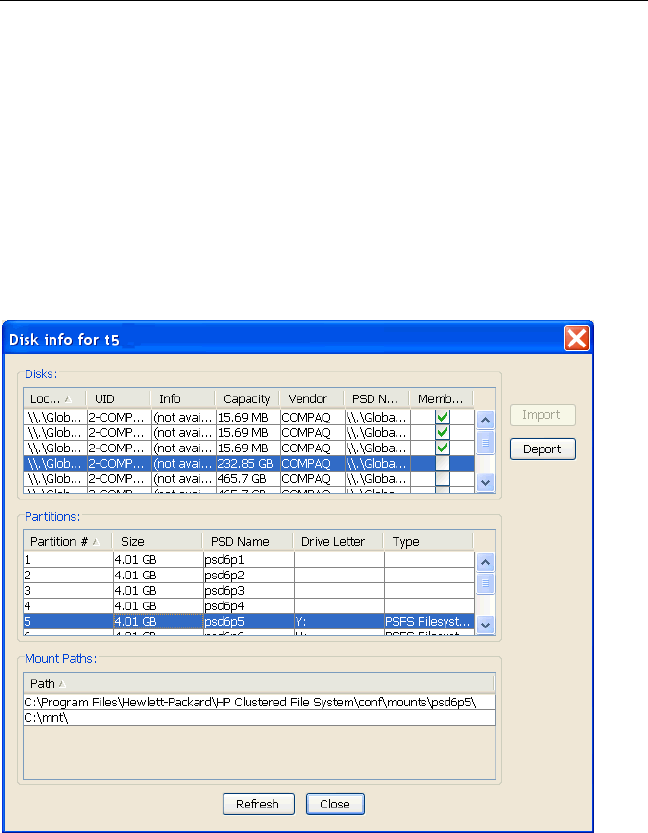

The Disk Info window displays disk information from the viewpoint of
the local server. It can be used to match the disk names appearing in the
Microsoft Disk Management utility (the Local Name) with the disk names
that HP Clustered File System uses (the PSD Name). You can also use this
window to import or deport SAN disks.
To see the disk information, select the server on the Servers tab on the HP
CFS Management Console, right-click, and then select View Local Disk
Info.
When you select a disk, the window displays information about the
partitions on the disk. The window also lists any mount paths for PSFS
filesystems.
To import or deport a disk, select that disk and then click Import or
Deport as appropriate.
