Chapter 8: Configure Dynamic Volumes 81

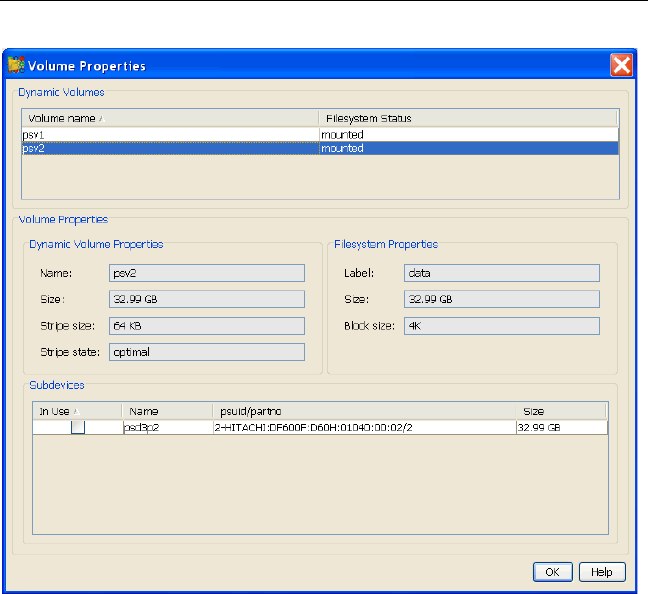

The Stripe State reported in the “Dynamic Volume Properties” section
will be one of the following:
• Unstriped. The volume is concatenated and striping is not in effect.
• Optimal. The volume has only one stripeset that includes all
subdevices. Each subdevice is written to in turn.
• Suboptimal. The volume has been extended and includes more than
one stripeset. The subdevices in the first stripeset will be completely
filled before writes to the next stripeset begin. To change the Stripe
State to optimal, you will need to recreate the dynamic volume.
To display the properties from the command line, use the following
command:
mx dynvolume properties <volumeName>
