Chapter 8: Configure Dynamic Volumes 83
To extend a dynamic volume on the Management Console, select Storage
> Dynamic Volume > Extend Volume and then choose the volume that
you want to extend.

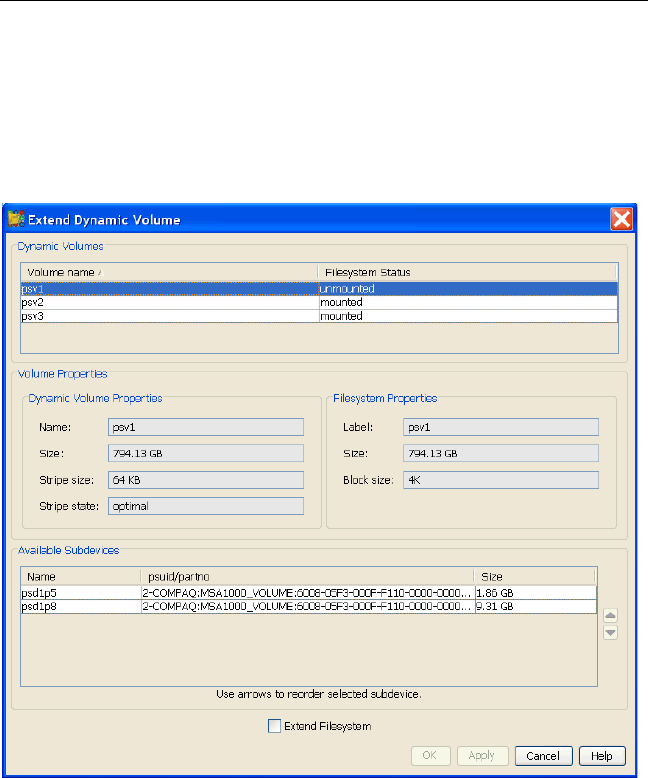

If a filesystem is on the volume, the Extend Dynamic Volume window
shows information for both the dynamic volume and the filesystem.
Dynamic Volume Properties: The current properties of this dynamic
volume.
Filesystem Properties: The properties for the filesystem located on this
dynamic volume.
Available Subdevices: Select the additional subdevices to be added to
the dynamic volume. The list includes all available subdevices on
