Chapter 8: Configure Dynamic Volumes 85

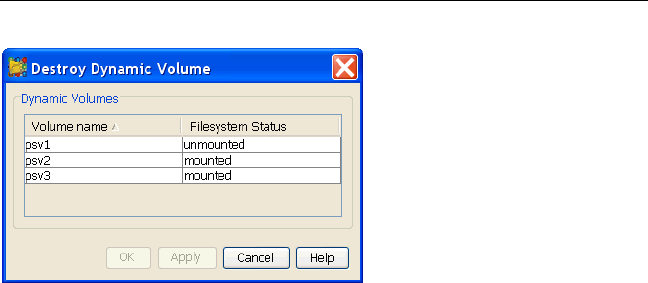

To delete a dynamic volume from the command line, use the following
command:
mx dynvolume destroy <volumeName>
Recreate a Dynamic Volume
Occasionally you may want to recreate a dynamic volume. For example,
you might want to implement striping on a concatenated volume or, if a
striped dynamic volume has been extended, you might want to recreate
the volume to place all of the subdevices in the same stripe set.
When a dynamic volume is recreated, the CFS Volume Manager first
destroys the volume and then creates it again using the subdevices and
options that you select. When the volume is destroyed, any filesystem on
that volume is also removed. Before recreating a volume, be sure that the
filesystem is no longer needed or has been copied or backed up to
another location. The filesystem must be unmounted when you recreate
the volume.
To recreate a dynamic volume on the HP CFS Management Console,
select Storage > Dynamic Volume > Recreate and then choose the volume
that you want to recreate.
If a filesystem is mounted on the volume, the Recreate Dynamic Volume
window shows information for both the dynamic volume and the
filesystem.
